Capped WPC Decking Board

The protective cap adds an extra layer of durability. Upgrade your outdoor space with our durable and stylish Capped WPC Decking Boards. Perfect for any home or business, these boards are built to last and look great too.

Type: Capped WPC Decking
Size: 140×25mm(standard)  sizes are customizable
Length: 2.4m, 2.9m, 3.6m, 4m, or customized
Component: 60% wood powder + 35% HDPE + 5% GERMANY IMPORTS BASF
Surface: Grooving, Embossing, Sanding, Brushing
Profile: Solid/Square Hollow/Round Hollow
Applications: Home decks, Patios, Pool sides, Board walks,  Outdoor cafes, Garden Paths, Public parks etc.
Certificates: SGS,CE, DIN, JIS, GOST and GBSGS,CE, DIN, JIS, GOST and GB

NEED A FAST QUOTATION
Get Free Samples/Album

China Leading Capped WPC Decking Manufacturer & Supplier

EcoxPlank is a leading manufacturer of high performance biofiber wood plastic composite (WPC) products in China. We provide Hi-tech and eco-friendly wholesale WPC Capped decking at competitive prices for worldwide customers. And we also accept OEM/ODM services and meet different requirements. Products have strong wear resistance, anti-fouling, anti-mildew and other properties, and can achieve almost zero maintenance during 30 years of use. We always follow the popular patterns and colors in the market, so that our composite products continue to iterate.

Wholesale Custom Capped WPC Decking Board

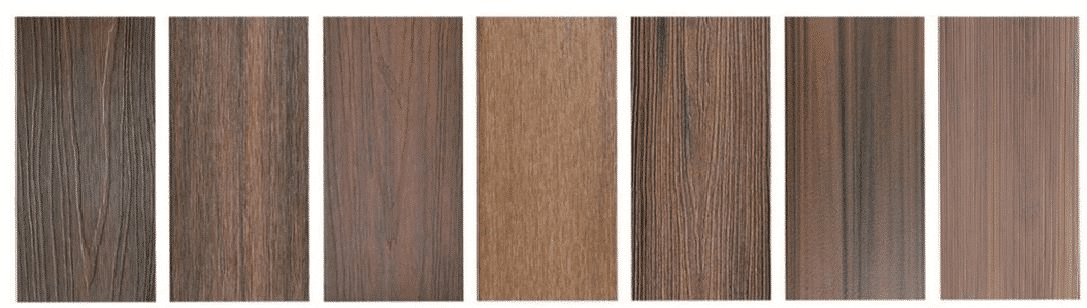

Our Capped WPC Decking Boards is available in 8 colors, regardless of thickness, length, panel color, texture can be customized.

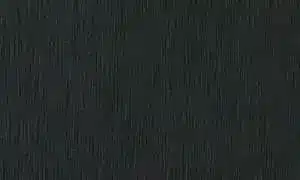

charcoal

Charcoal

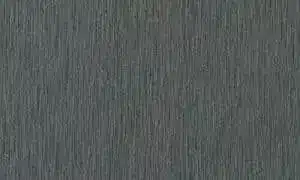

light-Grey

Light grey

grey

Grey

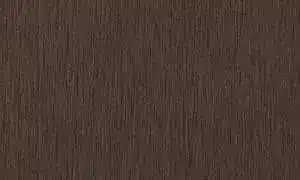

coffee

Chocolate

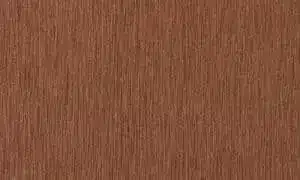

redwood

Red wood

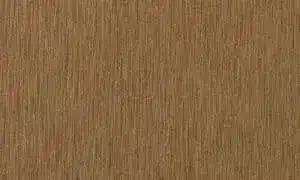

wood

Wood

cedar

Cedar

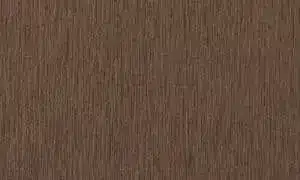

chocolate

Coffee

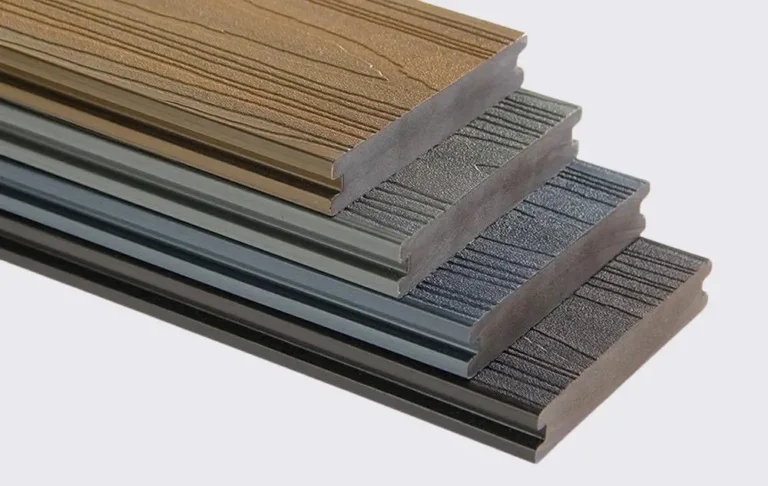

Capped WPC Decking
Capped Composite Decking - UFD018
  • Solid WPC Decking
  • Co-extrusion Technology
  • Anti-slip finish
  • sanded
  • length: 2.4/3.6m/4m or customized
  • Size: 150*25mm
CO140H24S-capped-composite-decking

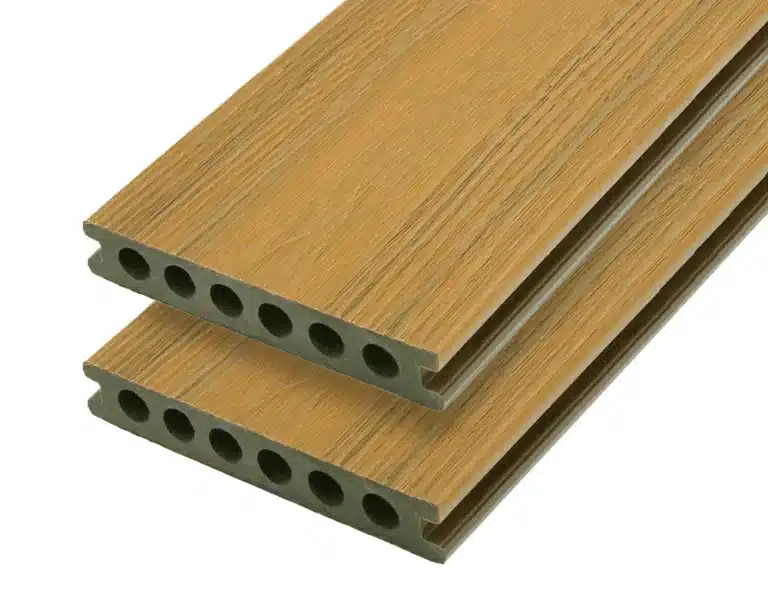

Capped Composite Decking – CO140H24S
  • Circle hole light weight design, easiy to install
  • Co-extrusion Technology
  • length: 2.4/3.6m/4m or customized
  • Size: 140*22mm
CO140H25S-–-Capped-Composite-Decking-wood

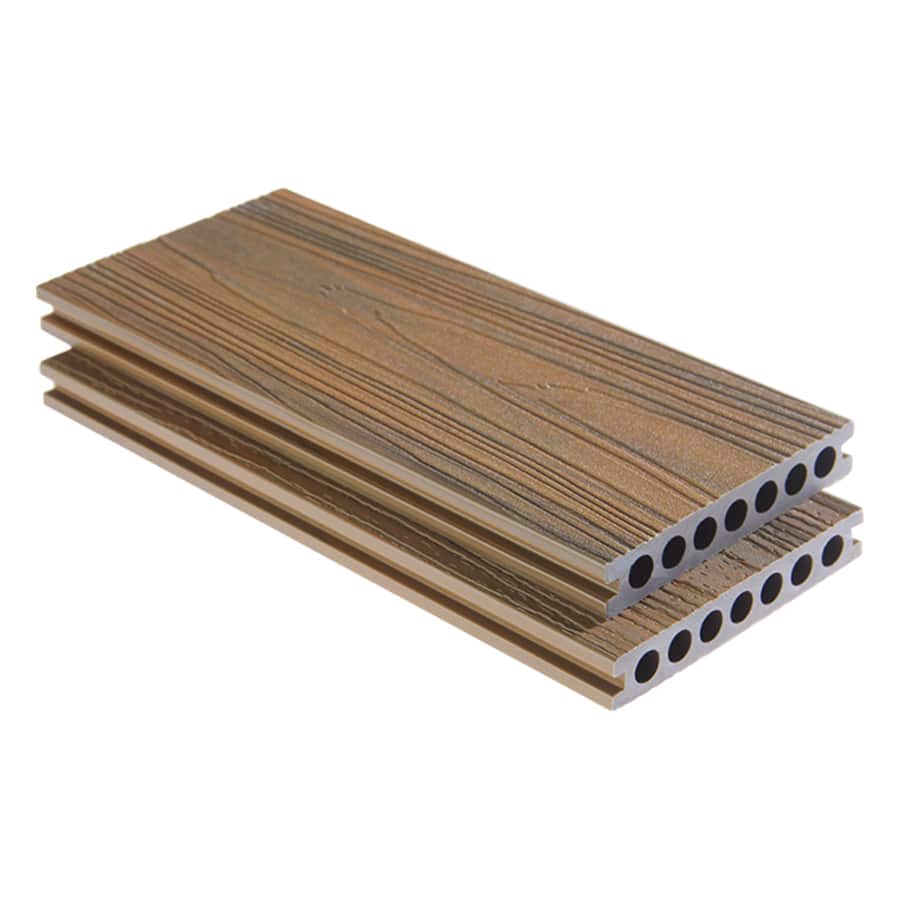

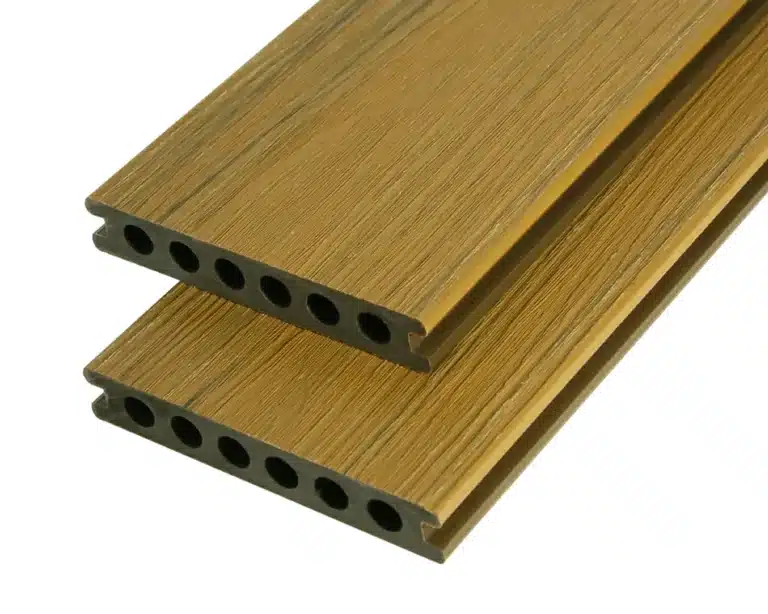

Hollow Capped Decking - CO140H23S(6 holes)
  • Circle hole light weight design, easiy to install
  • Co-extrusion technology, UV resistant capping
  • length: 2.4/4m or customized
  • Size: 140*23mm
CO140H23S-capped-composite-decking-wood
Hollow Capped Decking - CO140H23S (7 holes)
  • Circle hole light weight design, easiy to install
  • Co-extrusion technology, UV resistant capping
  • length: 2.4/4m or customized
  • Size: 140*23mm

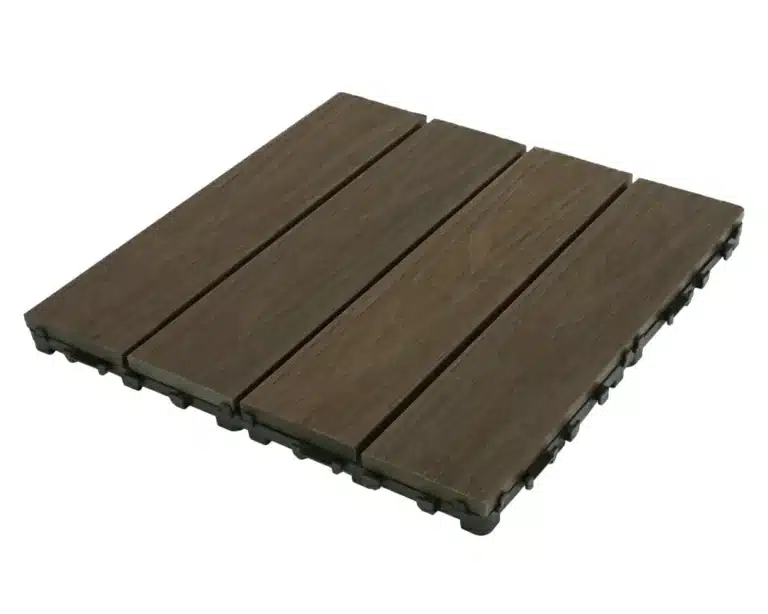

CO300M-Square-Decking-Tiles-capped

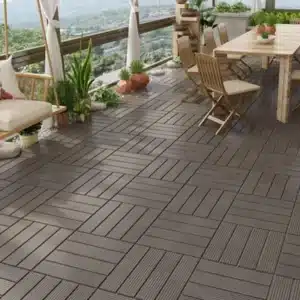

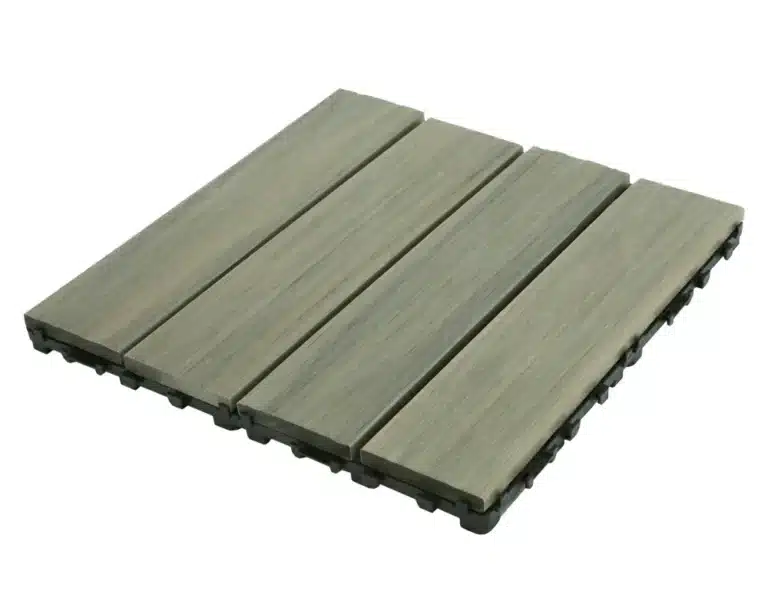

Diy Capped Composite Decking – CO300W
  • Co-extrusion Technology
  • Size: 300×300×22mm
CO300M-Square-Decking-Tiles-capped
Capped Composite Decking – CO140H24S
  • Co-extrusion Technology
  • Size: 300×300×22mm
NEED A FAST QUOTATION
Get Free Samples/Album
Capped WPC Decking Wholesale

capped composite decking Factory Wholesale Price

  • Capped composite decking Price: 12.5 – 32.9 USD/SQM
  • Minimum Order Quantity: 300㎡ per design & color
Get Detail Pricelist

What is Capped WPC Decking?

Capped WPC (Wood Plastic Composite) decking features a protective layer. Our WPC material is made from 60% wood powder + 35% HDPE + 5% GERMANY IMPORTS BASF.
This capped layer significantly enhances the performance compared to first-generation composite decking products. The surface has a capped protective layer, greatly improving durability, moisture resistance, UV resistance, acid corrosion resistance, and wear resistance, making it cleaner and more aesthetically pleasing. It is especially suitable for extreme and harsh weather conditions and regions. Its lifespan has been extended from 20 years in the first generation to 30 years.
Capped WPC decking requires almost no maintenance.

What is capped WPC Decking
Polymer Capped Enhanced Protection Layer

Polymer Capped Enhanced Protection Layer

1. You can choose high-density substrates in extreme environments.
2. The Capped protection layer is 20% thicker than similar capped WPC decking products on the market.
3. It has strong anti-oxidation, anti-corrosion, and UV resistance capabilities.

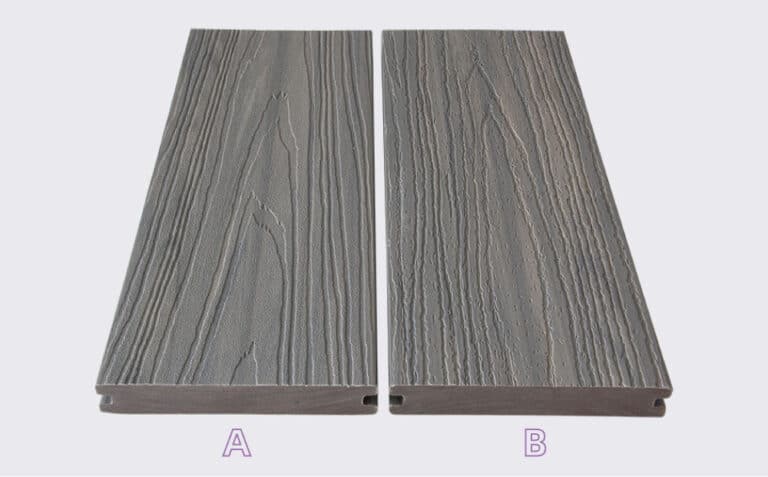

Two Material Options

If you want to reduce costs without compromising performance, you can choose our ASA WPC decking series. They have different substrate densities, making them lighter and more affordable.  Learn more about our ASA WPC series.

Two Material Options
High-Quality Anti-Oxidation Coating

High-Quality Anti-Oxidation Coating

Special antioxidants and fire retardants have been added to the additives, allowing the material to maintain its original texture and color even in harsh environments such as high temperatures, high pressure, and high humidity. This extends the lifespan of capped composite decking to up to 30 years.

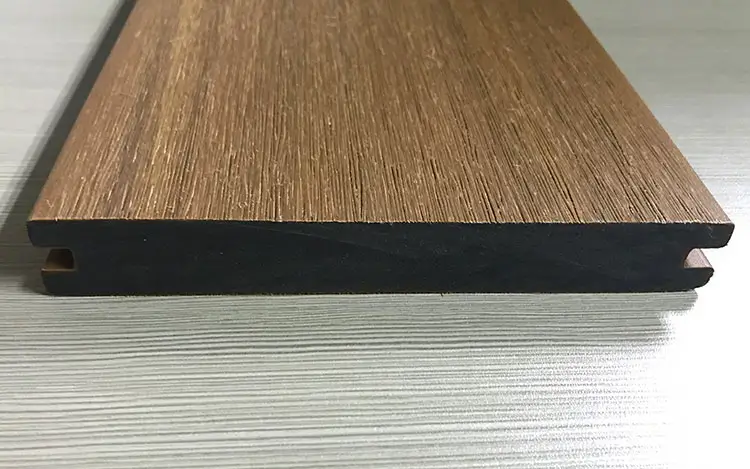

Advantages of Capped WPC Decking Boards

Durable

Durability

The protective cap adds an extra layer of durability.  It does not warp, crack, or splinter, making it an ideal choice for long-lasting outdoor spaces.

low-Maintenance

Low Maintenance

Requires less maintenance compared to wood. It does not need to be stained, painted, or sealed, and can be easily cleaned with soap and water.

Eco-friendly

Eco-Friendly

By using recycled materials, Composite decking is an environmentally friendly option. It helps reduce deforestation and the amount of plastic wastes.

weather-resistance

Weather Resistance

Resist various weather conditions, including heavy rain, snow, and intense sunlight. It is resistant to fading and staining, ensuring it maintains its appearance over time.

Anti-slip

Anti-slip

This slip-resistant ensures a secure and safe walking experience, even in wet conditions. Ideal for pool surrounds, patios, and walkways.

Aesthetic Appeal

Aesthetic Appeal

The natural wood grain texture and different color options make any outdoor area look beautiful. These boards are perfect for adding a stylish and attractive touch.

protection

Protection

Capped deck boards offer superior protection against stains from substances like wine, coffee, and oils. Spills can be easily wiped off the protective surface.

Fire resistance

Fire Resistance

With a strong fire resistance and a B fire-proof rating, this material is highly flame-retardant and self-extinguishes if a fire occurs.

No gap

No Gap Option

If you are looking for no gap solution. Capped WPC Decking Board will be the best option. It also extremely easy to fix.

Get Free Samples

SURFACE TREATMENT

Surfaces

SF-2.0

SF-2.1

SF-2.2

SF-2.3

SF-3.0

SF-3.1

SF-3.3

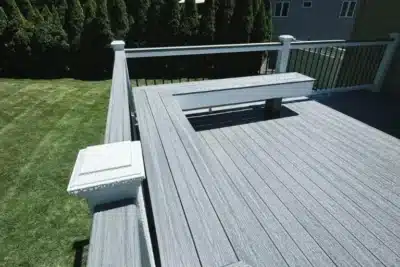

Capped WPC Decking Application

PRODUCT FEATURES

Based on the traditional WPC decking, after research and develop in the long term,we creat our special co-extrusion effect, we also have more than 24 colors for your choice.
Hollow size

Width

140mm

140mm

200mm

Thickness

20mm

22mm

22mm

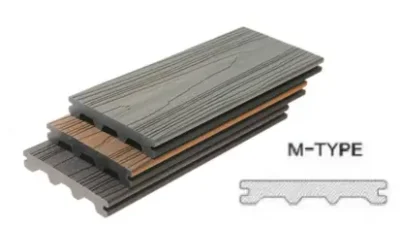

M-type Size

Width

140mm

142mm

--

Thickness

22mm

21mm

--
solid size

Width

140mm

140mm

140mm

Thickness

20mm

22mm

24mm

EASY INSTALLATION SYSTEM, 20 CLIPS NEEDED PER SQM,

INVISIBLE OF THEM;

SAVE MORE TIME FOR YOU.

WATERPROOF

COMPONENT: 6 0 % WOOD POWDER+ 3 5 % HDPE + 5 % GERMANY IMPORTS BASF

Difference between Hollow vs Solid

We use both Hollow Composite Decking and Solid Composite Decking. Hollow composite decking boards have a hollow core. They are lighter than solid boards and are often easier to handle and install.

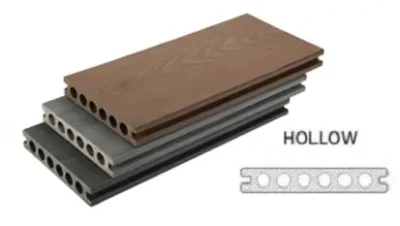

Hollow Deck Board

  • Lightweight: Hollow boards are lighter, making them easier to transport and install.
  • Cost-effective: Generally, hollow boards are less expensive than solid boards.
  • Cooler Underfoot: Hollow boards can dissipate heat more effectively, staying cooler underfoot in hot weather.
  • Easier to Handle They can be easier to cut and handle during installation due to their lower weight.

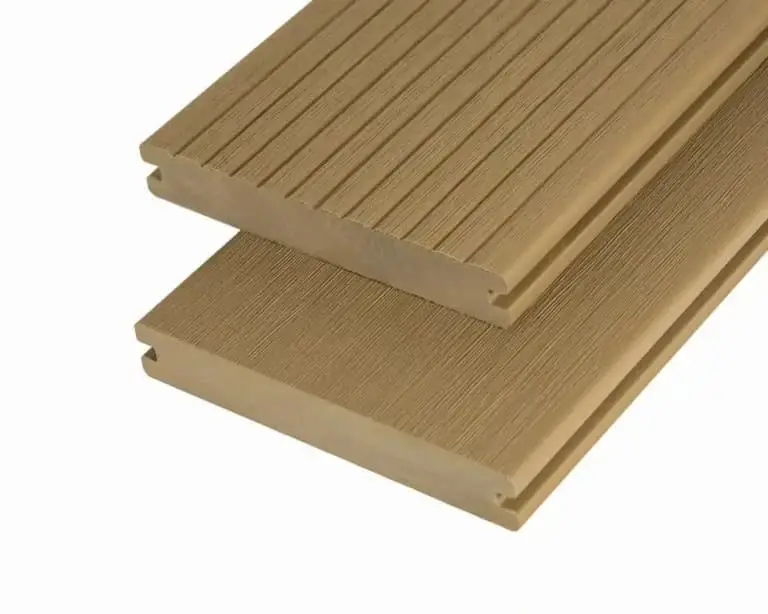

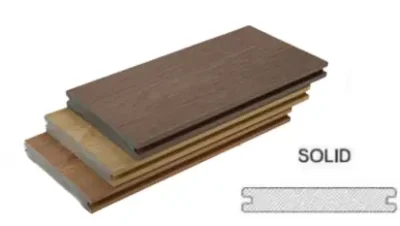

Solid Deck Board

  • High Strength: Solid boards are stronger and can support more weight.
  • Natural Look: They look and feel more like traditional wood.
  • Solid Sound: They provide a more solid, quiet sound underfoot.
  • Long-lasting: Generally, solid boards have a longer lifespan.

What Our Valuable Partners Say About Us

Ecoxplank not only provides the best product, but also the best service, and I am impressed by their professional experience. We love the look and quality of composite fencing.
Liam Thompson
Liam ThompsonGereral Manager
Ecoxplank's WPC product looks cool and impressive, and the WPC co-extruded quality is beyond my expectations. We hope to maintain our cooperative relationship in the future.
JOHN DANCE
JOHN DANCEPurchasing Manager
EcoxPlank embodies the customer's commitment to selection, quality and technical service. In our construction projects we provide tailor-made solutions and I am grateful for the precise program control that meets and even exceeds our expectations.
I.I.P. GROUP
I.I.P. GROUPCEO
WPC decking and WPC wall panels met all our needs. They are not only durable but also look great. Installation was very easy too. We used these products in several projects. My clients showed a high level of satisfaction with them!
John Anderson
John AndersonProject Contractor
We have strict requirements for our suppliers' product quality and delivery reliability. ECOX's WPC decking balustrades and composite planter boxes have always been high quality and delivered on time. We've been working together for many years. Customer value is everything to us.
Sophia Müller
Sophia MüllerGreenLine CEO
Quick Inquiry

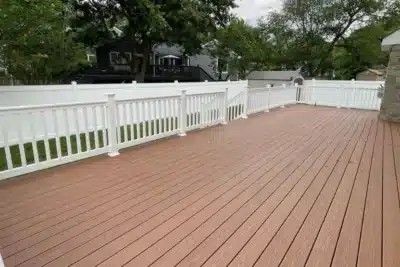

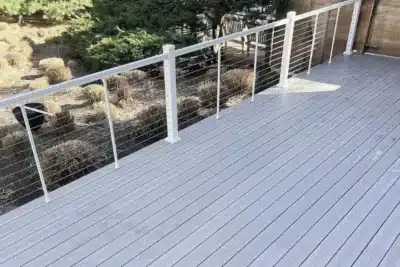

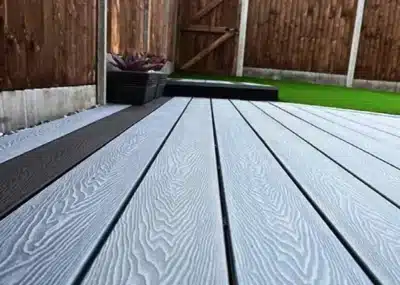

Capped WPC Decking Applications

Showcase our different applications, residential, industrial,  commercial, public spaces etc.

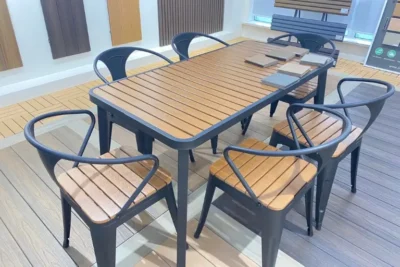

Embossed WPC Table Chair

Capped WPC Table Chair

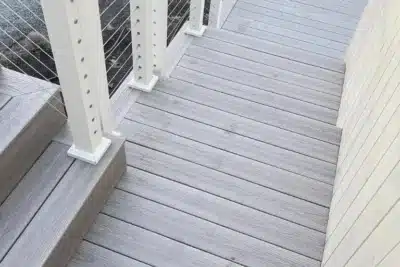

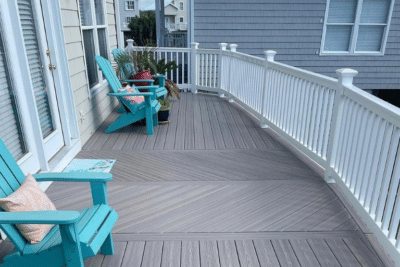

WPC Decking Balcony

Capped WPC Decking Belcony

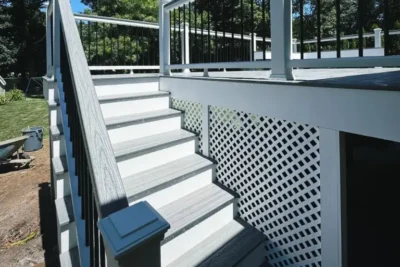

Embossed Composite Decking Stairs

Capped Composite Decking Stairs

Embossed Composite Decking

Capped Composite Decking

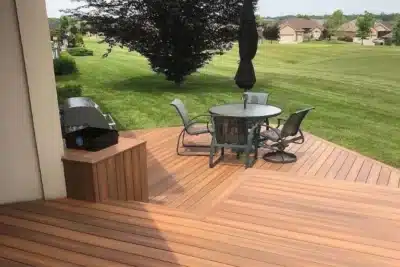

Embossed outdoor composite decking

Capped outdoor composite decking

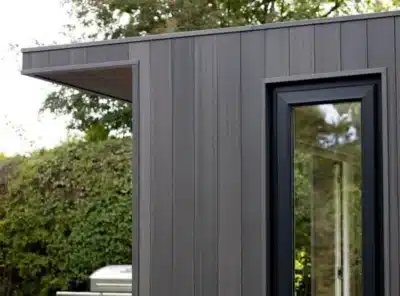

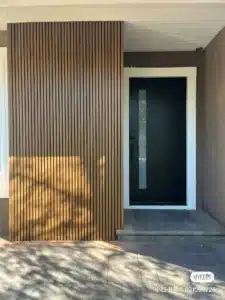

WPC board wall cladding

Capped indoor composite decking

plastic wood panels

Capped WPC Belcony

Embossed WPC deck stair

Capped WPC deck stair

Embossed WPC decking

Capped WPC Decking

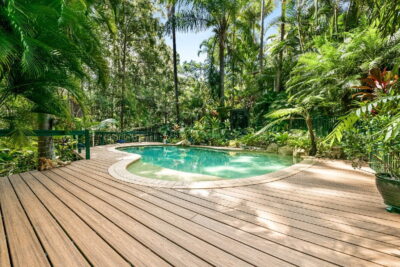

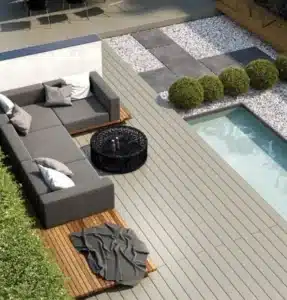

Swiming Pool decking application

Capped WPC pool decking

3d Embossed WPC Decking

Capped WPC Decking

Embossed Outdoor decking

Capped Outdoor decking

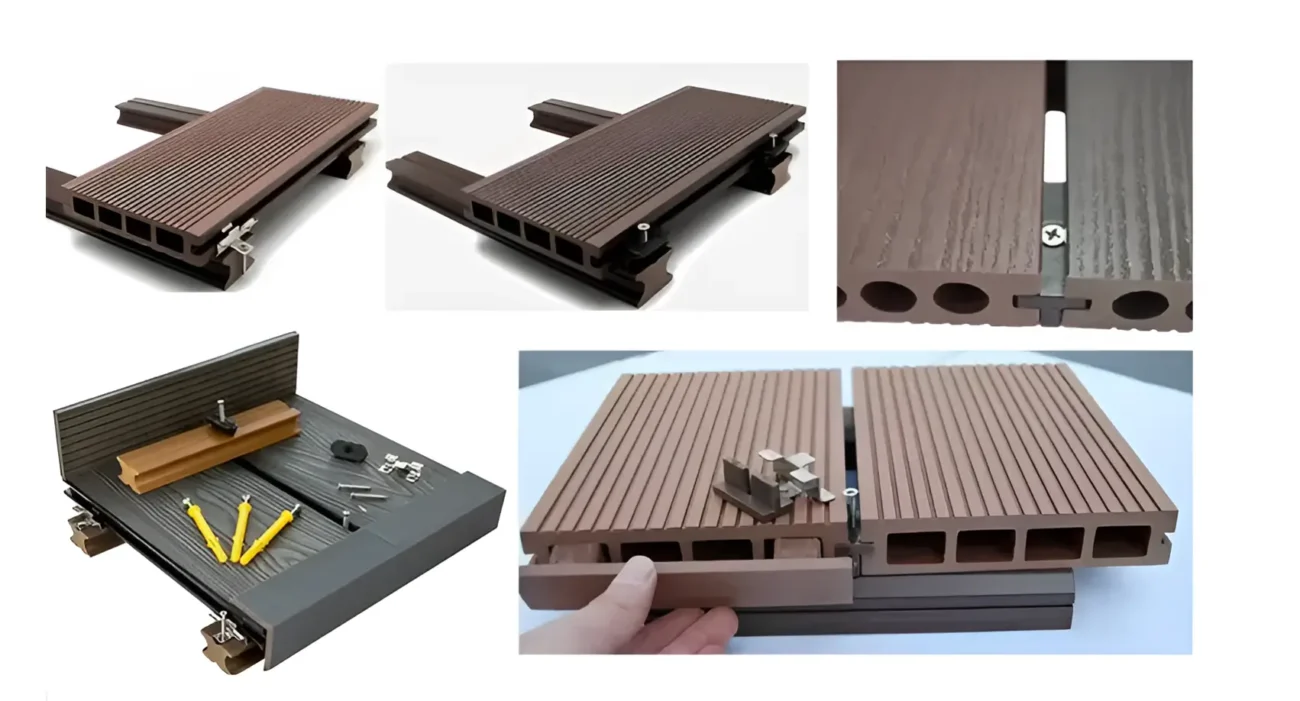

Installation Accessories for WPC items

Start Clips

Start Clips

Stainless steel clip

Stainless steel clip

Plastic Clip

Plastic Clip

Plastic Clip

Plastic Clip

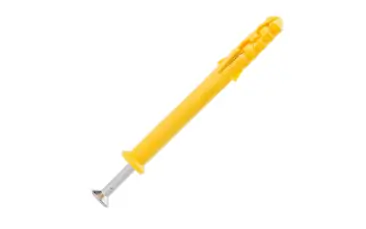

Expansion screw

Expansion screw

screw

Screw

Solid WPC joint

Solid WPC joint

WPC L corner

WPC L corner

Installation guide

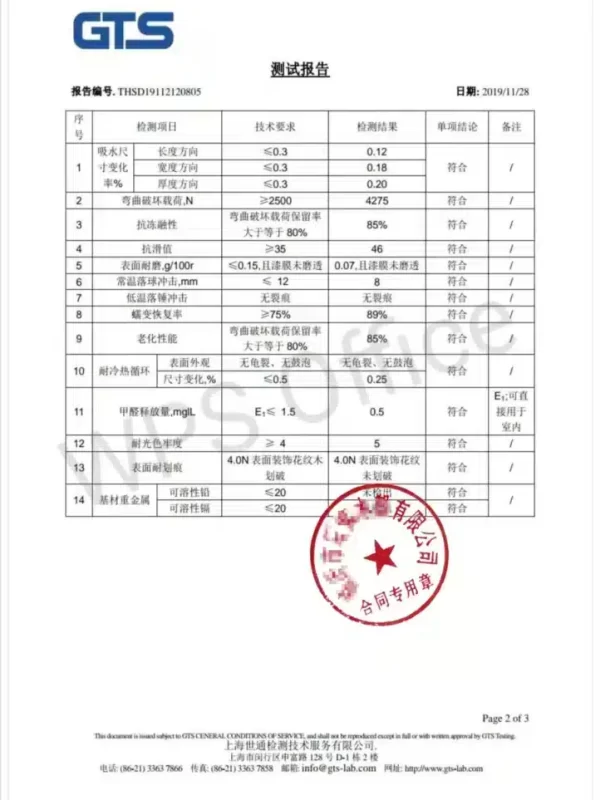

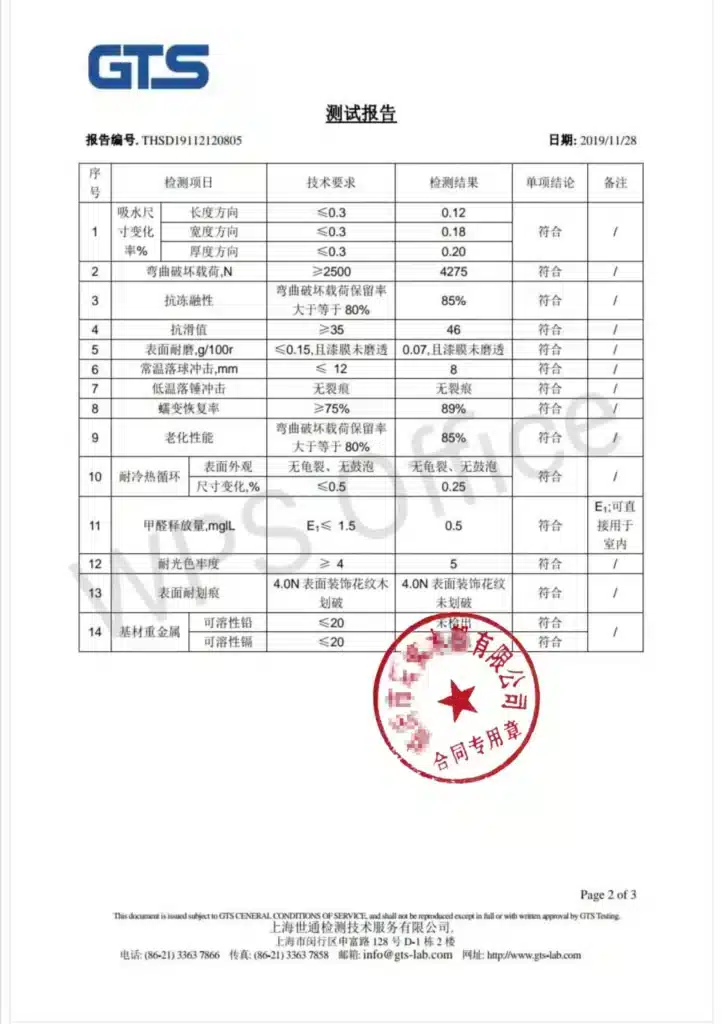

No.

Inspection Item

Standard Requirement

Test Result

Item Conclusion

Test Basis

1

Bending Strength

≥2500

5315

Conforming

GB/T 24508-2020, 6.5.4.1

2

 Impact Resistance

Bending Strength Retention Rate ≥80%

93%

Conforming

 GB/T 24508-2020, 6.5.10

3

Low-Temperature Impact

No Cracks at -10°C

No Cracks

Conforming

GB/T 24508-2020, 6.5.12

4

Constant Temperature Water Absorption

Water Absorption ≤12%

7.3%

Conforming

GB/T 24508-2020, 6.5.8

5

Density

≥0.3 g/cm³

0.58 g/cm³

Conforming

GB/T 24508-2020, 6.3

6

Surface Hardness

 ≥2

1.2

Conforming

GB/T 24508-2020, 6.5.3

7

Surface Abrasion

≤0.15

0.15

Conforming

 GB/T 24508-2020, 6.5.5

8

Dimensional Stability

0.62

Conforming

GB/T 24508-2020, 6.5.16

9

 Thermal Aging Resistance

After aging, external appearance, color, no cracking, and no peeling

No change in external appearance, no cracking, and no peeling

Conforming

GB/T 24508-2020, 6.5.2

10

 Water Absorption Length Direction

 ≤0.3%

<0.1%

Conforming

GB/T 24508-2020 (6.5.7)
 Water Absorption Width Direction

≤0.3%

<0.1%

 Conforming

GB/T 24508-2020 (6.5.7)

 Water Absorption Thickness Direction

≤0.5%

<0.1%

Conforming

GB/T 24508-2020 (6.5.7)

11

Heat Resistance Front, Back

 ±1.0%

0.2%

Compliant

GB/T 24508-2020 (6.5.8)

Heat Resistance Dimensional Change Difference

≤0.5

<0.1%

Compliant

GB/T 24508-2020 (6.5.8

12

Surface Quality Average Value

≥1

1.41

Compliant

GB/T 24508-2020 (6.3.7)

13

Cold and Heat Cycle Resistance Surface Appearance

No cracks, no bubbles

No cracks, no bubbles

Compliant

GB/T 24508-2020 (6.5.9)

Dimensional Change

≤0.5

0.1

Compliant

GB/T 24508-2020 (6.5.9)

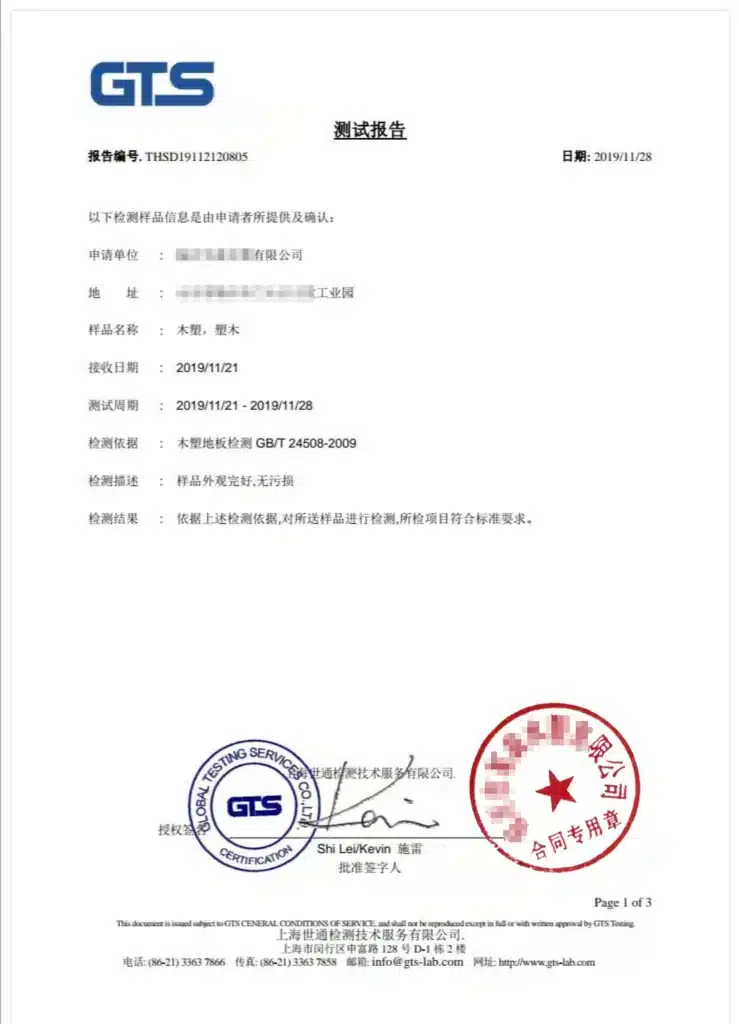

Sample Name

Wood Plastic Decking

Test Category

Routine Inspection

Commissioning Unit

Ecoxplank

Supplier

Ecoxplank

Manufacturer

Ecoxplank

Sample Status

Complete Sample Received

Sample Receipt Date

March 17, 2022

Sample Quantity

20 pieces

Production Date/Batch No.

Model Specification

140mm×23mm×6000mm

Test Basis

According to the test methods specified in GB/T 24508-2020 for wood plastic decking.

Inspection Date

March 21-23, 2022
Judgment Basis

Wood Plastic Decking GB/T 24508-2020

Inspection Items

Full Item Inspection

Inspection Conclusion

The sample submitted has been tested according to the methods specified in GB/T 24508-2020 for wood plastic decking. All tested items meet the standard requirements.

Date

April 1, 2022

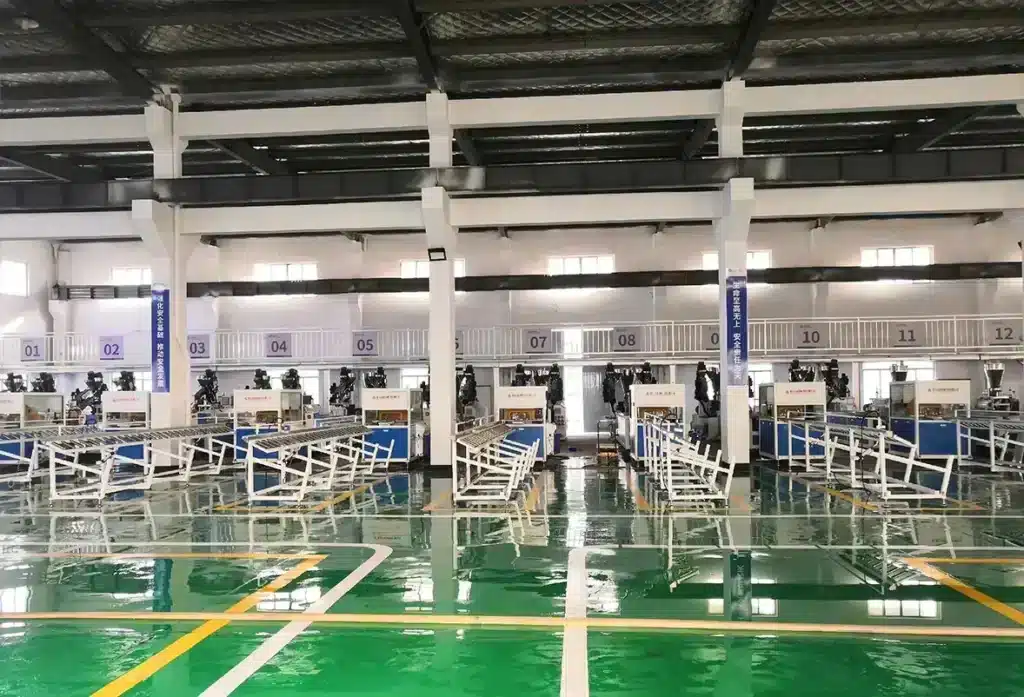

Machinery for Efficient Production

We have a large scale of automated production equipment to meet the simultaneous production of a variety of products, no matter the size of your order. In addition to producing WPC decking, WPC wall panels,WPC deck tiles,WPC wall cladding, composite fencing, etc. You can also quickly produce any WPC product to match your project needs.

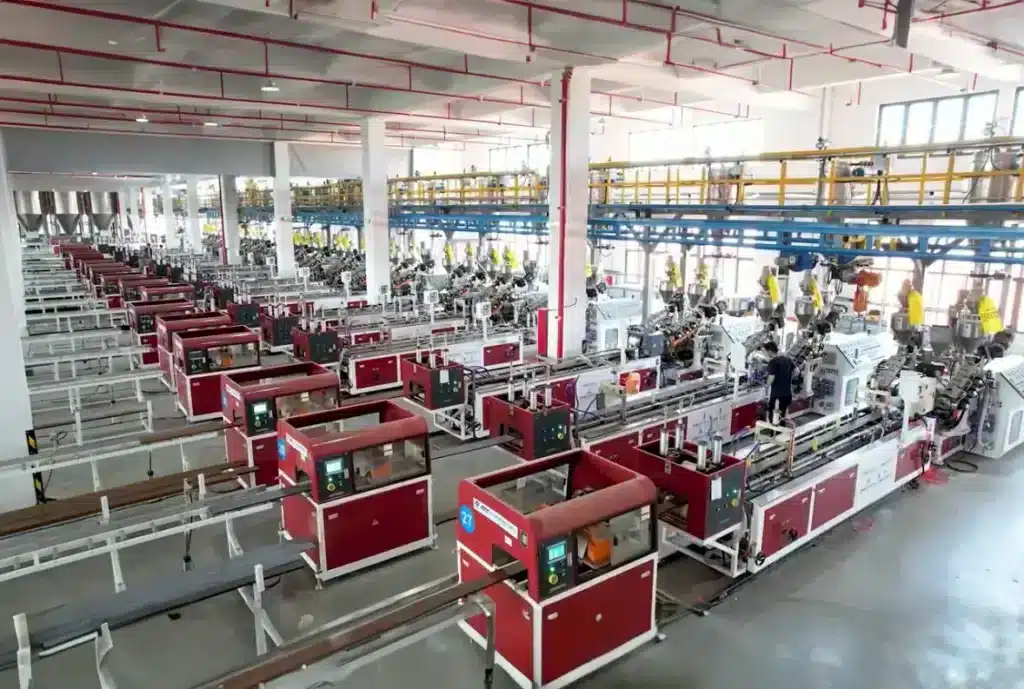

WPC-composite-decking-production-line

65 Production Lines for WPC Composite Decking

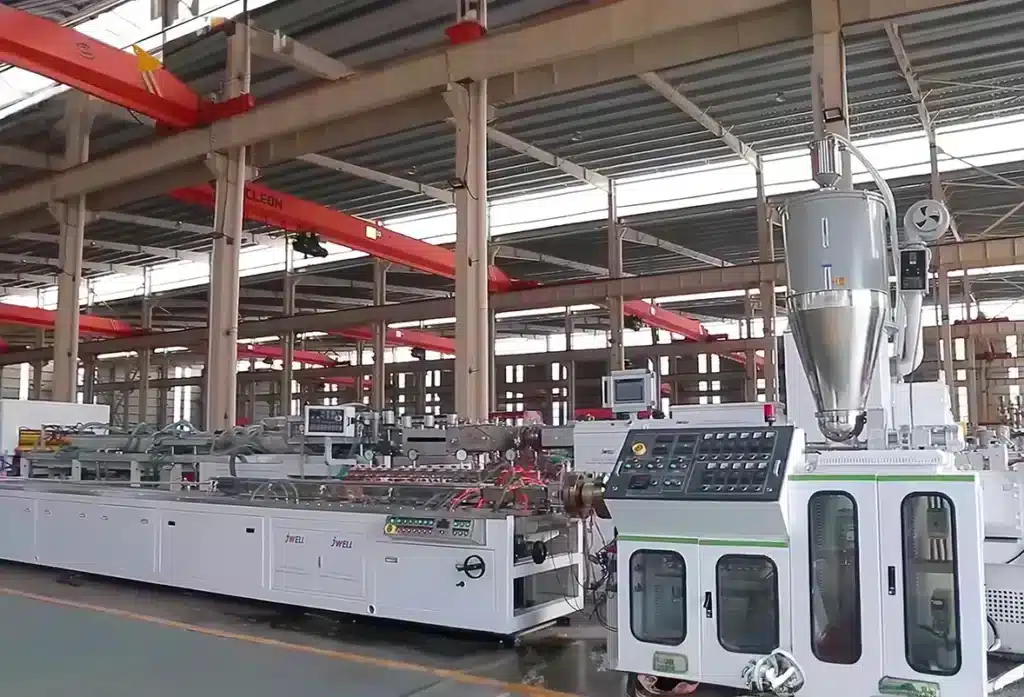

WPC-composite-board-production-line-inside-a-factory
Fully Auto-WPC Mixing/CO-Extrusion System
Automatic-composite-wall-panel-production-line
51 Production Lines for WPC Composite Wall Wanels

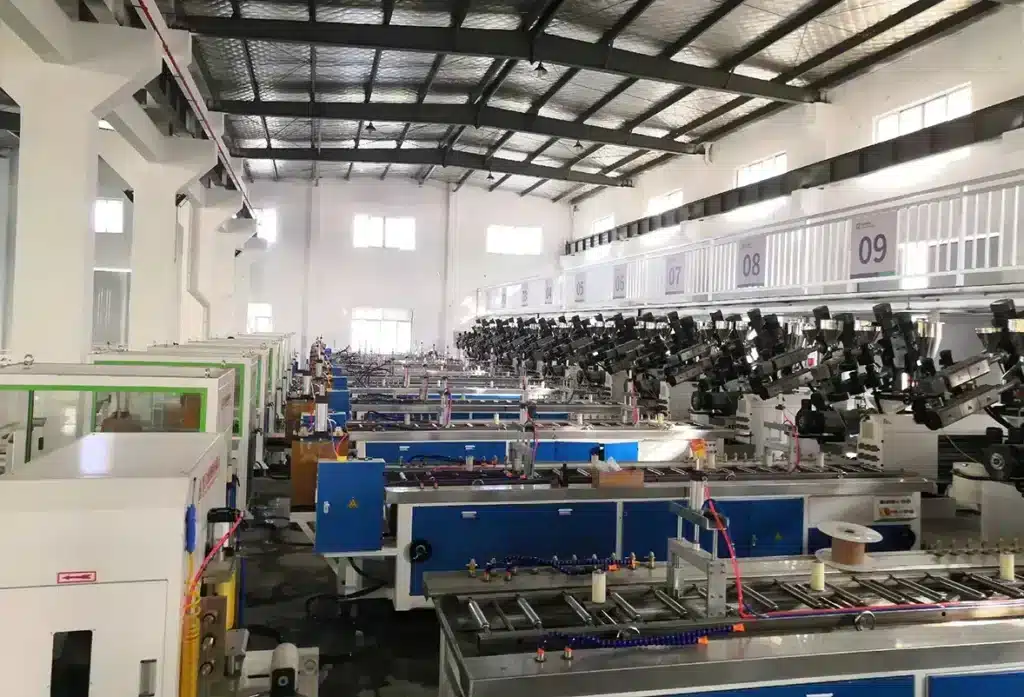

Fully-automatic-composite-fencing-production-line
43 Production Lines for Composite Fencing

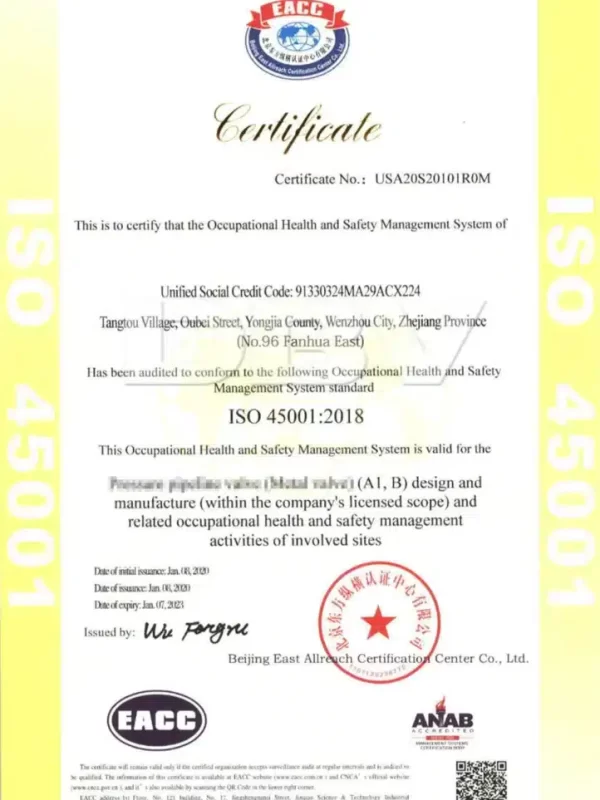

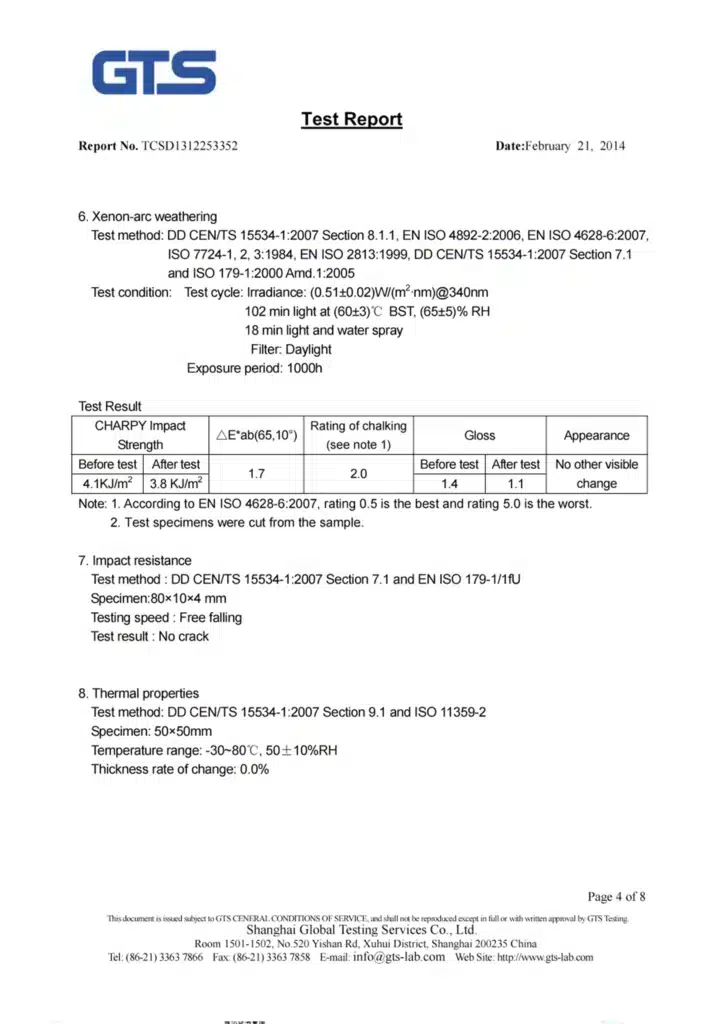

Authoritatively Certified

As our factory complies with ISO quality management requirements, EcoxPlank’s products are made following SGS,CE, DIN, JIS, GOST and GB standards. Over the years, we have earned numerous certifications to provide you with an effective guarantee of our products’ quality.

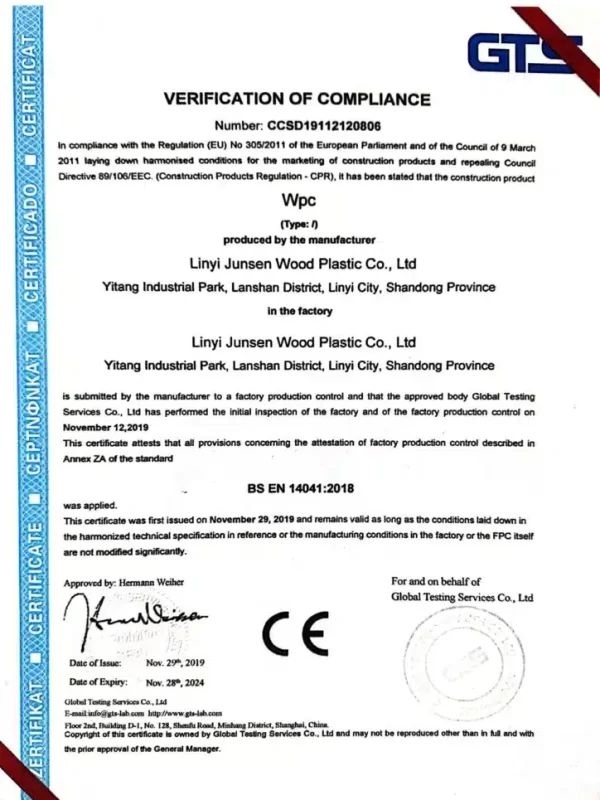

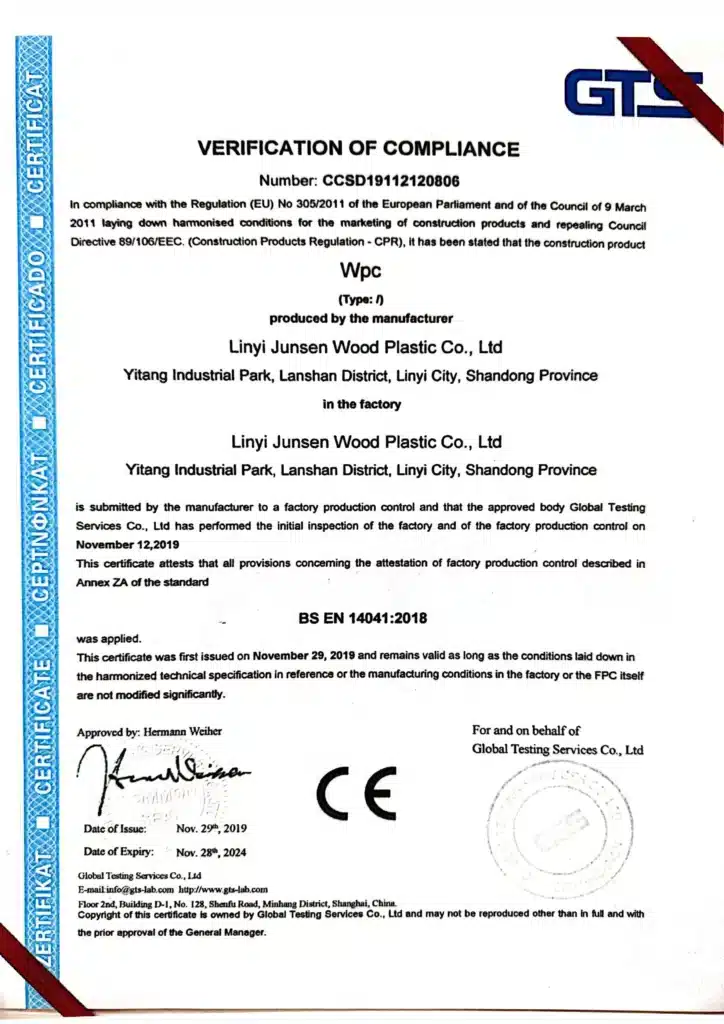

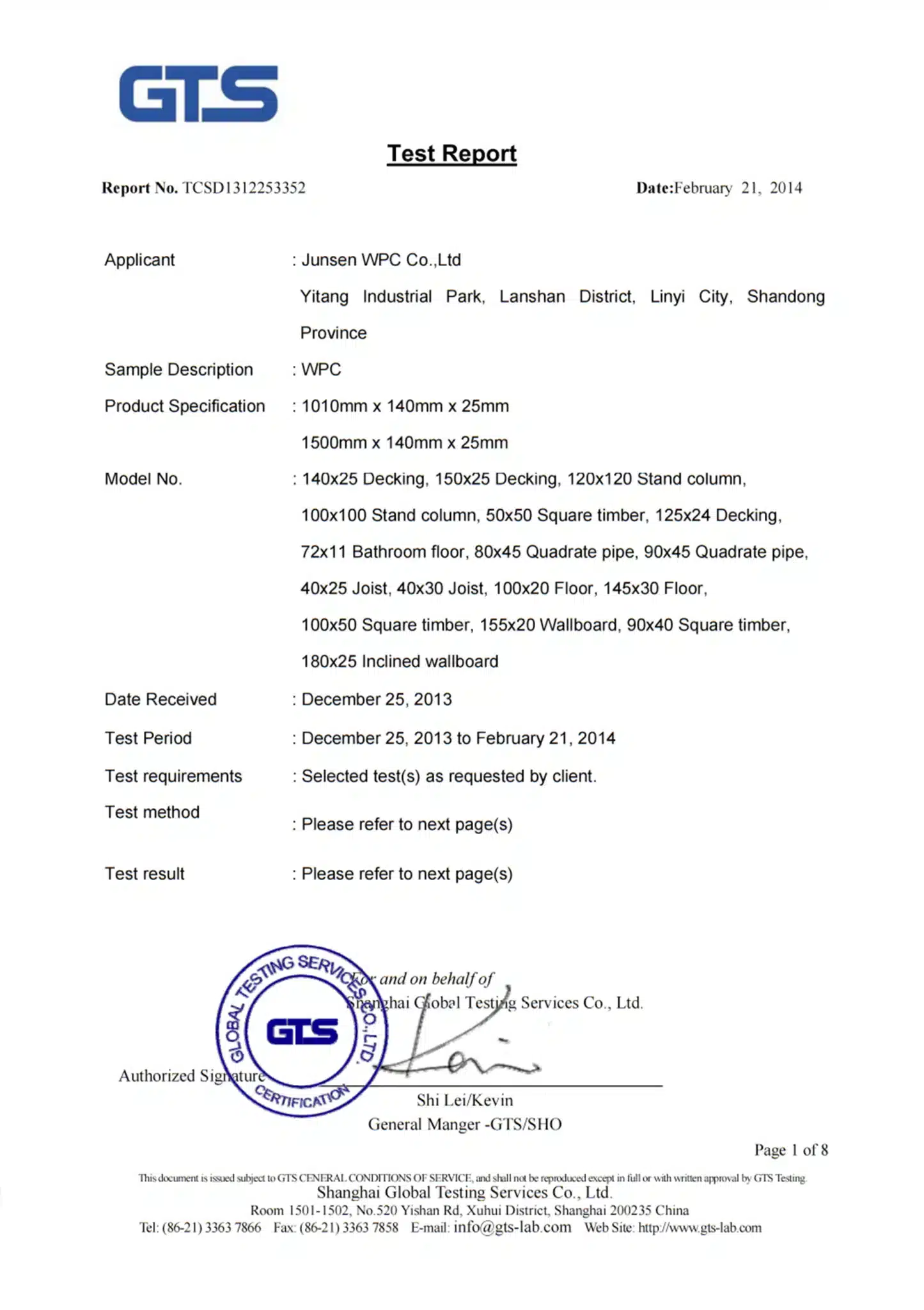

CE CERTIFICATE 0036
CE CERTIFICATE 0036

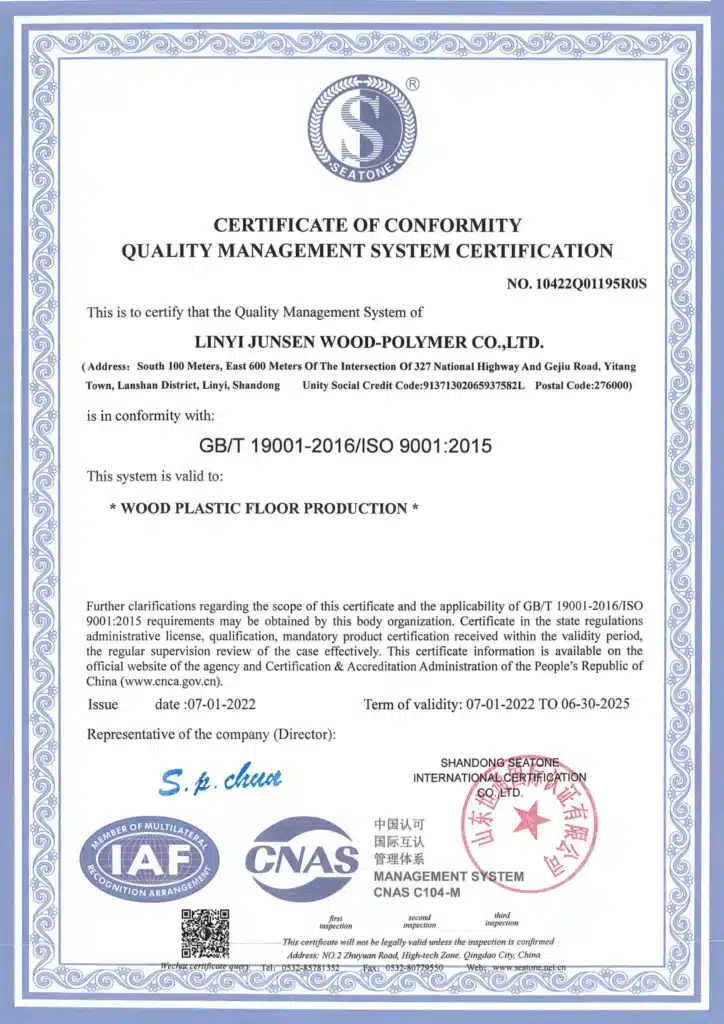

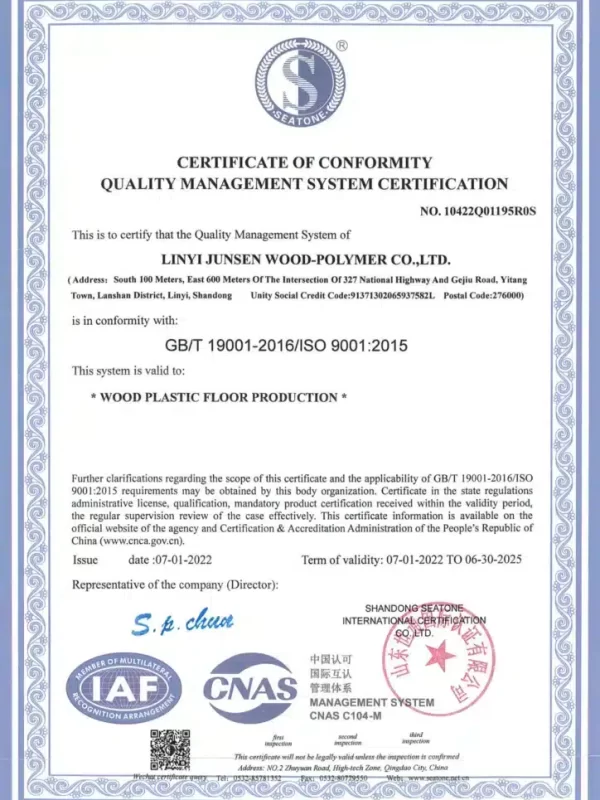

WPC certification 1SO 9001:2022
WPC certification 1SO 9001:2022
WPC Performance Certification TH-19
WPC Performance Certification TH-19

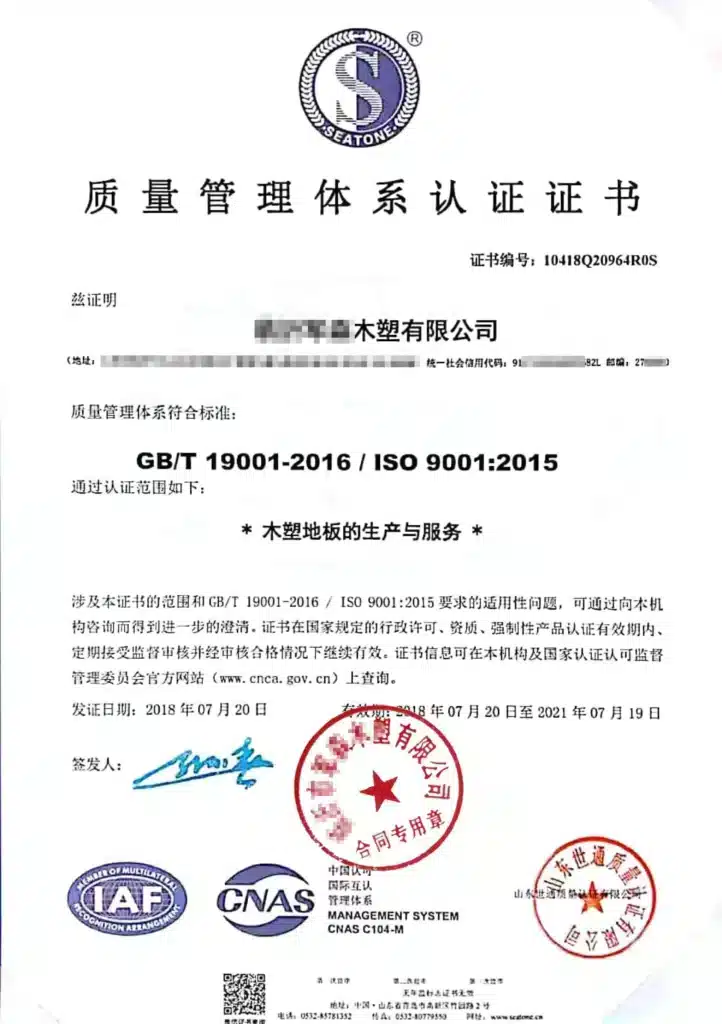

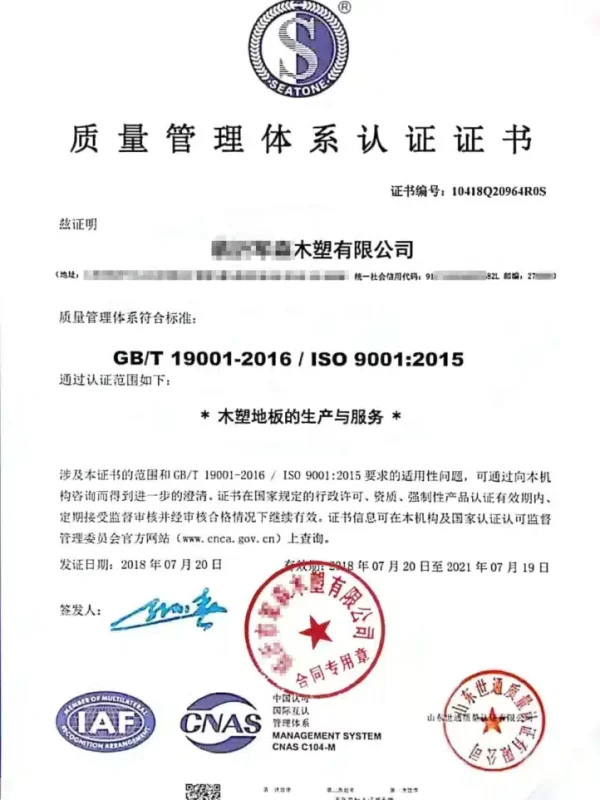

WPC API Certificate GBT19001-2022
WPC API Certificate GBT19001-2022

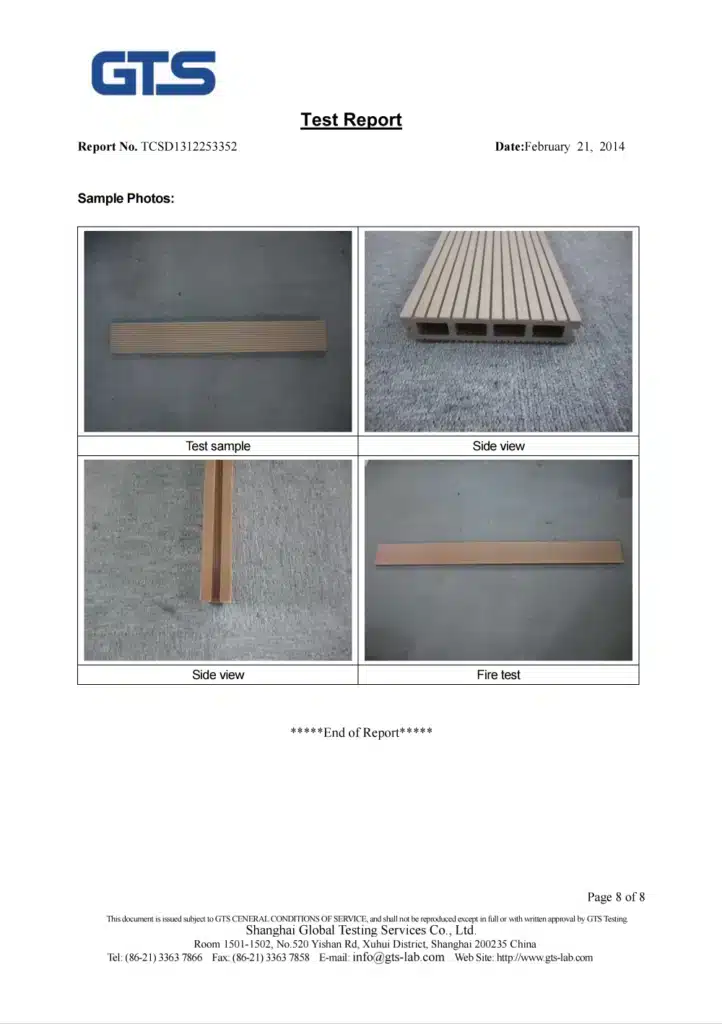

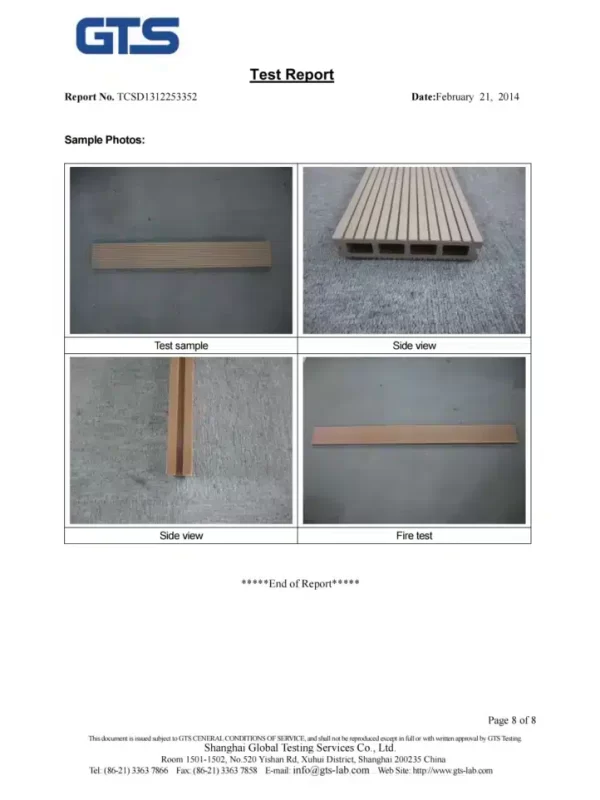

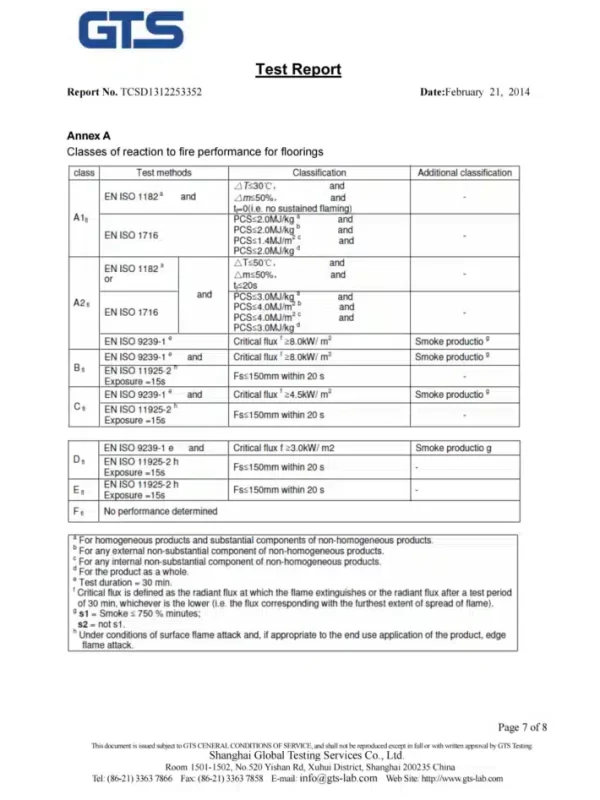

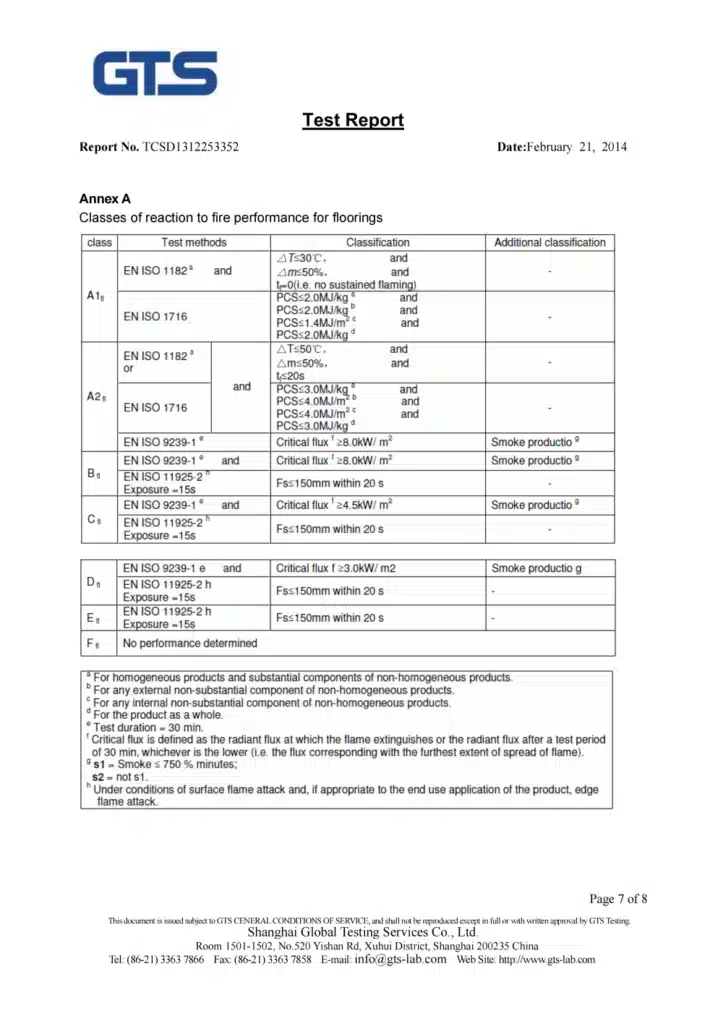

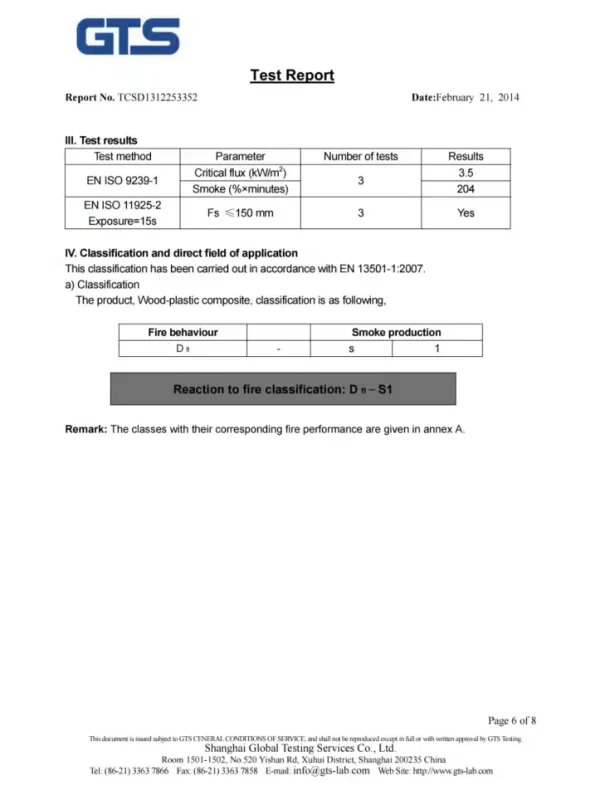

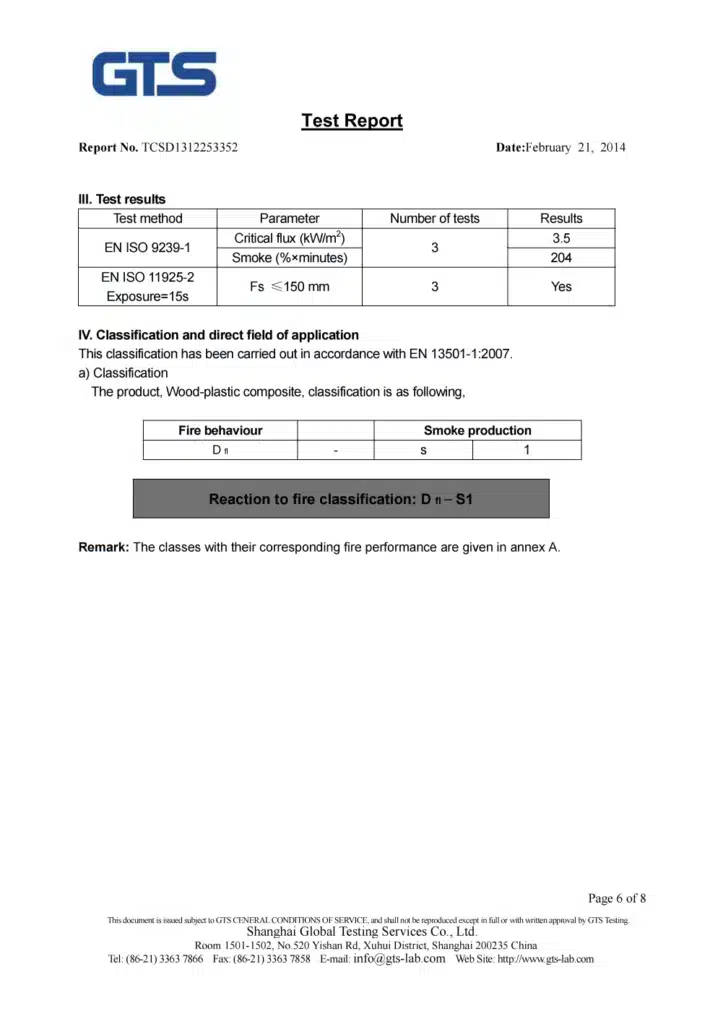

Fire resistance test report RF
Fire resistance test report RF

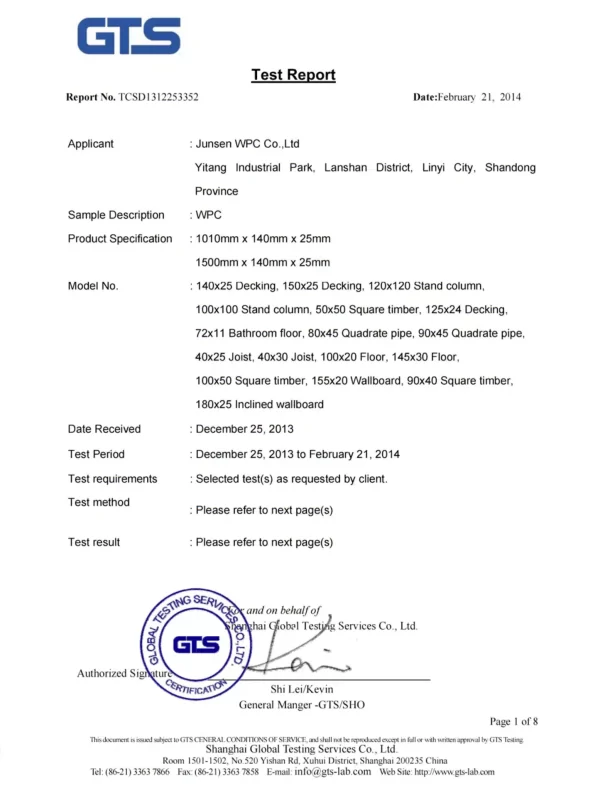

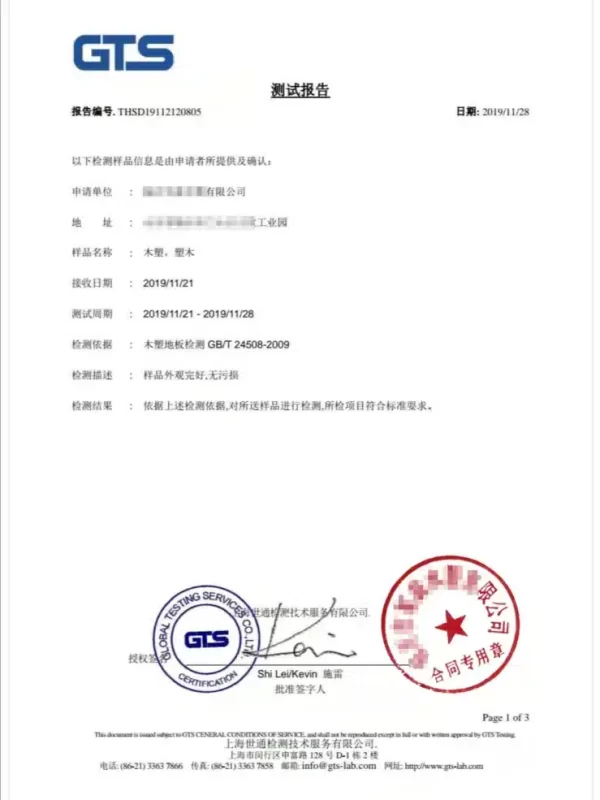

Wood plastic material certification GBT24508
Wood plastic material certification GBT24508
Wood plastic material certification GBT24508
Wood plastic material certification GBT24508

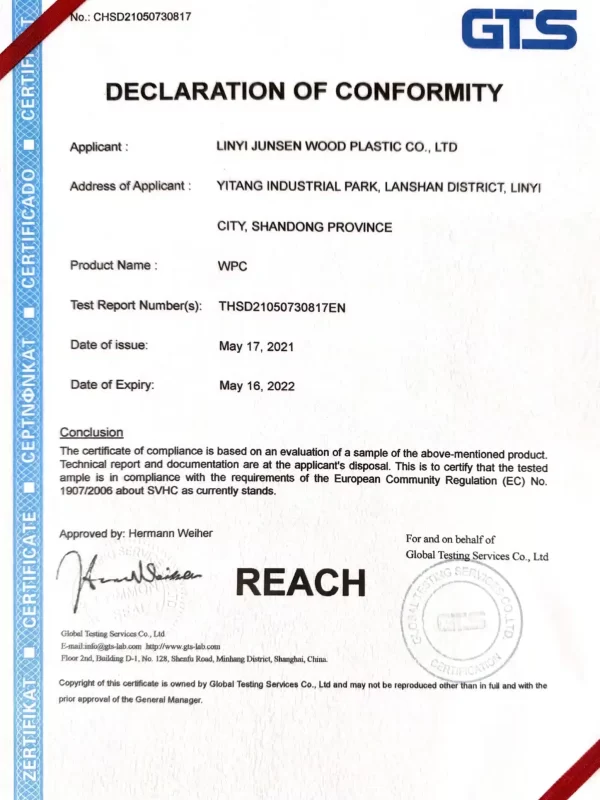

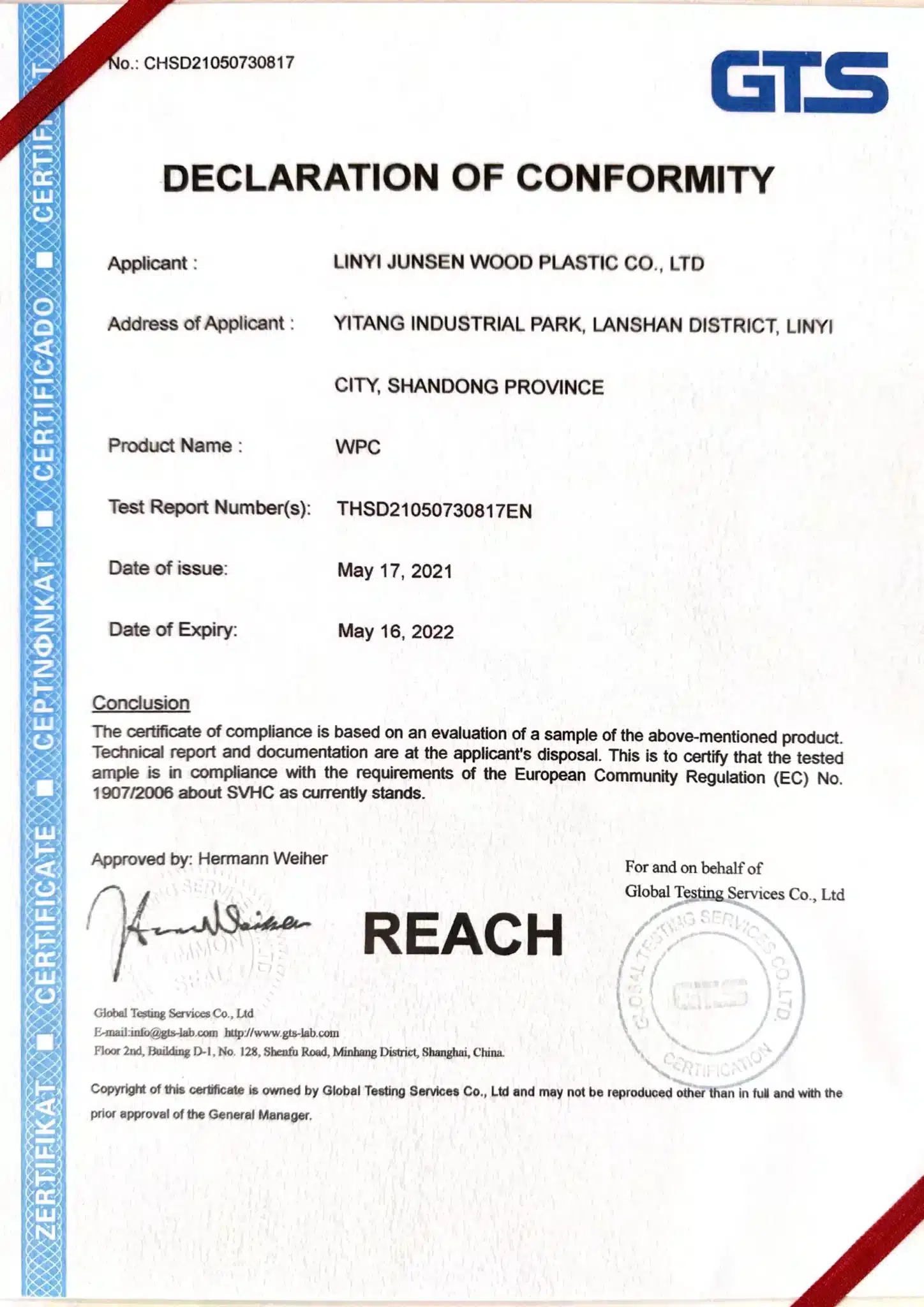

European REACH Certification -SVHC
European REACH Certification -SVHC
ISO 9001
ISO 9001
WPC wear resistant HS-191212
WPC wear resistant HS-191212
WPC certified CNAS C104-M
WPC certified CNAS C104-M
226 tests for hazardous gases 5AG
226 tests for hazardous gases 5AG

TELL US SPECIAL REQUIREMENTS FOR Capped WPC Decking Board

If our standard size or color do not perfectly match your needs, we also offer custom service.

Send Custom Requirement

Related Products

    Ecoxplank Blog

      INFORMATION QUESTIONS

      FREQUENTLY ASKED QUESTIONS

      How to ensure quality?
      1. Before mass production of WPC products, we will produce a sample in advance;
      2. When each batch of goods is in the assembly line, it will be checked and sorted one by one, and only qualified will it be packed down the line;
      3. Automatic production line, non-manual production, all ingredients and temperature control, are controlled by computer program, workers will follow the automatic control system;
      What are the benefits of purchasing from Ecoxplank?
      1. Ecoxplank is a construction project supplier certified by the Chinese government. Ecoxplank is one of the few suppliers to participate in official infrastructure projects in China, and its product quality has been recognized as stable;
      2. Ecoxplank has global experience in large-scale projects, and engineers cooperate to conduct feasibility analysis in extreme environments to ensure the use of products in extreme environments;
      3. There is an experimental team that focuses on the research of polymer materials, always developing the latest products, and upgrading the performance of each generation of products to reduce the cost of products. The third generation of co-extruded materials has been listed, with better performance, lighter and lower price.
      4. The original composite WPC industrial chain base has a very complex and huge supply chain system to support product innovation and competitive prices in the world to help customers break through the market.
      What's the minimum order quantity for the product?
      Usually 300 square meters per color/model. If demand is less than MQO:update existing inventory products for customers to choose from.
      How to install WPC outdoor floor?
      There are video installation tutorials, very simple. Generally, it should install keel first. Fix the WPC board on the keel using a nail gun,and then plug another WPC board. One after another till the installation is finished.
      How long is the service lifetime of WPC floor?
      It is about 25-30years under ideal situations.
      Do WPC products need painting?
      As the difference with the wood, WPC products their own color, they need not extra painting.
      What color can you provide?
      Generally, we provide 8 main colors as Cedar, yellow, red pine, red wood, brown, coffee, light grey, blue grey.
      And also, we can make a special color per your request.
      How to make the defective Restoration?
      We recommend sanding the finish of the surface. After sanding ,some of the plank will get back to the original appearance.
      How to deal with Rust Stains, Ground-In Dirt and Grime?
      You can use a cleaning product containing oxalic or phosphoric acid base to lighten or remove the rust or dirt.
      How many tons can you load in one 20ft container ?
      We can loaded about 20 tons in one 20ft container for hollow decking, And 26tons for one 40ft container. For the solid board, we can load about 23 tons in one 20ft container. And 26 tons in one 40ft container.
      Where will WPC products use?
      WPC products are widely used currently.

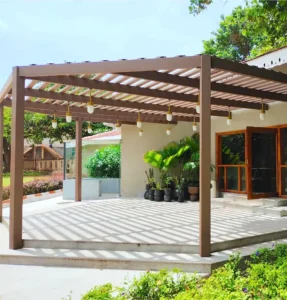

      For outdoor, it was mainly used at gardens landscape, the beach road, villa yard, etc;

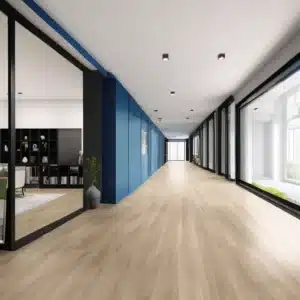

      For indoors, it was mainly used for kitchen, balcony, TV setting wall, etc.

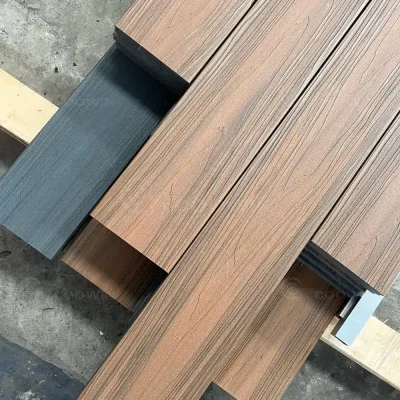

      The raw material of ECOXPLANK WPC composite decking
      60% wood flour, 30% plastic (HDPE), 10% additive. It is co-extruded with a polyethylene top layer for ultra low-maintenance performance. We can also adjust the formula of raw material according to your request.
      Delivery time
      Usually the delivery time for one container is 15-25 days. Time will be faster if the order is continuous and stable. Large orders or other special circumstances need to be confirmed with production.
      What is the payment method and how much is the advance payment?
      T/T is generally used. Orders below 5000USD require a one-time payment before production.
      For other orders, a 40% advance payment is required, and the balance payment must be paid before shipment.

      Come Visit Us!

      Business Address: No.1214, Block C, Jinhui Global Center, Yanta District, Xi ‘an, Shaanxi, China

      Factory Address: Industrial Park, Caoxian County, Heze City, Shandong Province, China

      Email: sales@ecoxplank.com

      Our team is very friendly and ready to help you with any queryies.

      If you would like to send us message, then please fill free to contact us via whatsapp or you can use this form. We will get in touch with you as soon as possible.

      Contact Us

      Get free samples and prices right now!

      EcoxPlank is a leading manufacturer of high performance wood plastic composite (WPC) products in China. Contact us to get free samples. If our standard size do not match for you, we also provide custom service.
