The 6 Most Important Technical Indicators of WPC Decking
When you approach the building materials market or browse e-commerce platforms, faced with hundreds or thousands of WPC decking (compos...
Traditional WPC Decking is also called 1st generation WPC composite decking. Our WPC decking mainly includes WPC Hollow Decking, and Solid WPC Decking, and can deal with grooving, embossing, sanding, and brushing surfaces, cheap and good quality, can suitable for most of the outdoor projects.
Type: Traditional Decking
Size: 140×25mm(standard) sizes are customizable
Length: 2.4m, 2.9m, 3.6m, 4m, or customized
Component: 60% wood powder + 35% HDPE + 5% GERMANY IMPORTS BASF
Profile: Solid/Square Hollow/Round Hollow
Applications: Backyard decks, Patios, Garden pathways, Pool surrounds, Outdoor cafes, Public parks etc.
Certificates: SGS,CE, DIN, JIS, GOST and GBSGS,CE, DIN, JIS, GOST and GB
Traditional WPC Decking is a type of wood-plastic composite (WPC) decking that combines wood fibers or sawdust with plastic materials to create a durable, low-maintenance outdoor flooring option. Unlike embossed WPC decking, Traditional WPC decking typically has a smooth or lightly brushed surface without deep wood grain textures.
It has been a popular choice for outdoor spaces for decades due to its classic appearance and natural feel. However, while traditional wood decking offers certain aesthetic and tactile benefits, it also comes with a set of challenges that make it less ideal for modern outdoor environments.
We use both Hollowed Board and Solid Board on our Embossed WPC Decking boards.

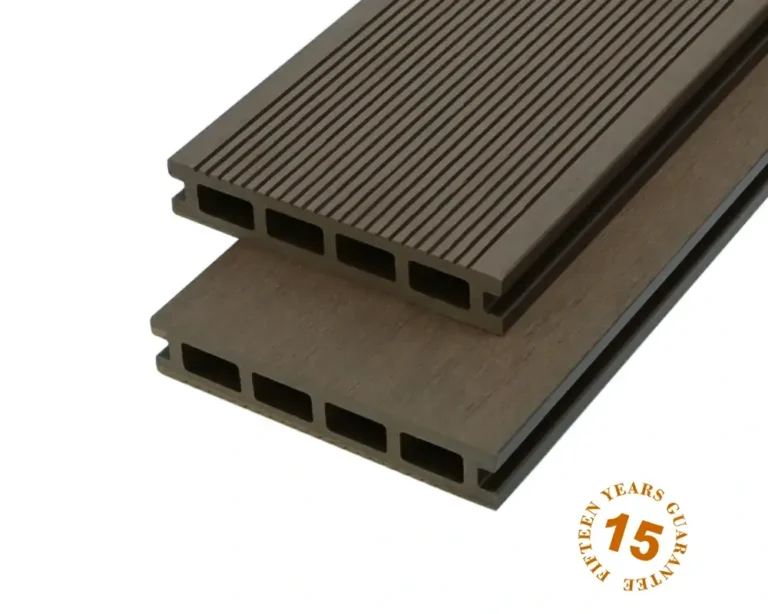

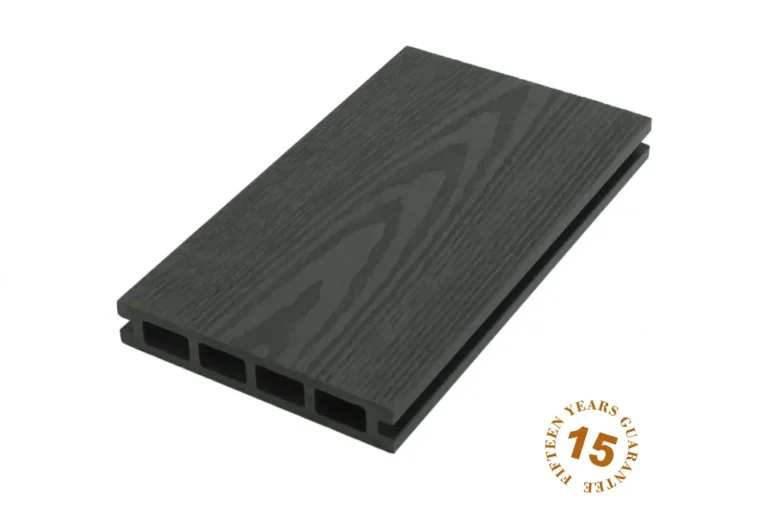

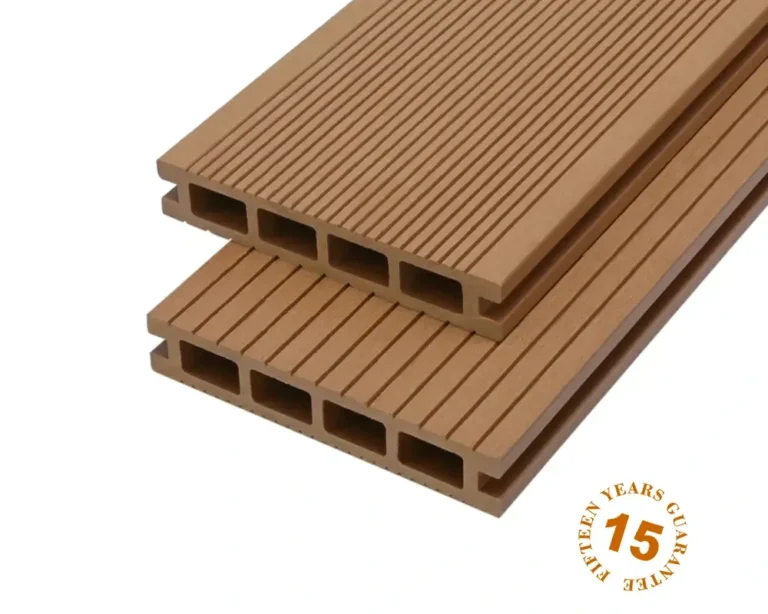

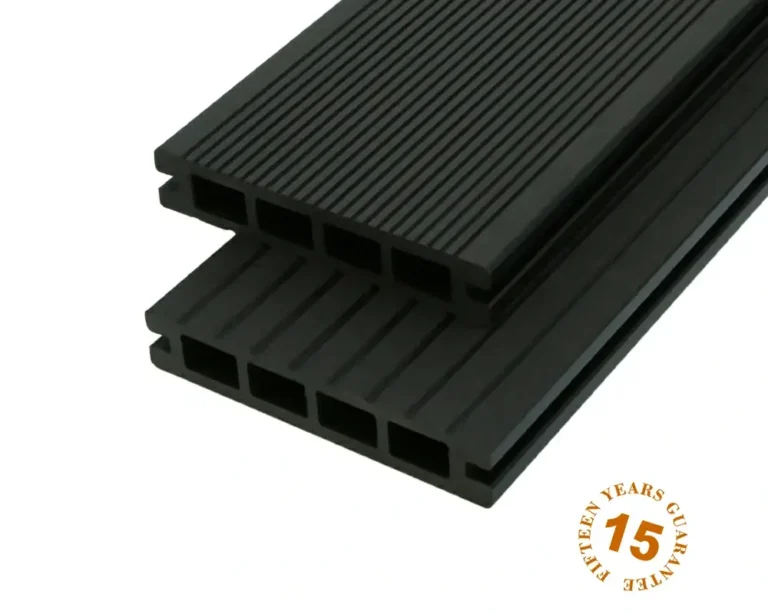

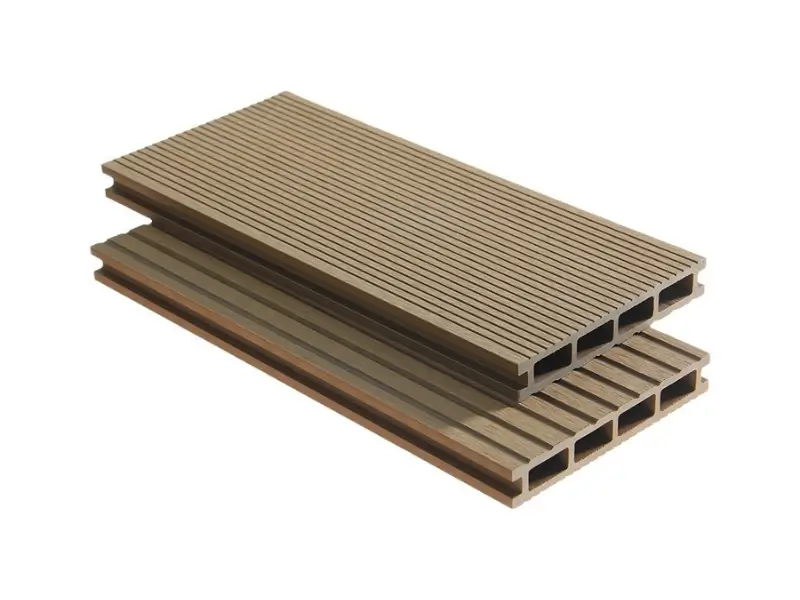

Hollow composite decking boards have a hollow core. They are lighter than solid boards and are often easier to handle and install.
Highly resistant to rot, decay, and insect damage. It does not warp, crack, or splinter, making it an ideal choice for long-lasting outdoor spaces.
Requires less maintenance compared to wood. It does not need to be stained, painted, or sealed, and can be easily cleaned with soap and water.
By using recycled materials, Composite decking is an environmentally friendly option. It helps reduce deforestation and the amount of plastic wastes.
Resist various weather conditions, including heavy rain, snow, and intense sunlight. It is resistant to fading and staining, ensuring it maintains its appearance over time.
This slip-resistant ensures a secure and safe walking experience, even in wet conditions. Ideal for pool surrounds, patios, and walkways.
The natural wood grain texture and different color options make any outdoor area look beautiful. These boards are perfect for adding a stylish and attractive touch.
Resistant to moisture, which prevents mold, mildew, and water damage. This feature makes them ideal for areas with high humidity or frequent rainfall.
With a strong fire resistance and a B fire-proof rating, this material is highly flame-retardant and self-extinguishes if a fire occurs.
Beautiful Surface, Plenty colors choice and perfect wood grain texture Suit for most kinds of outdoor environment and sites.

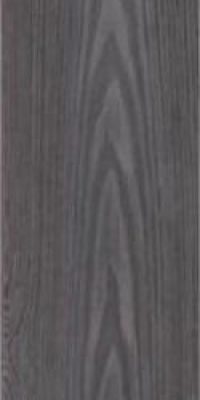

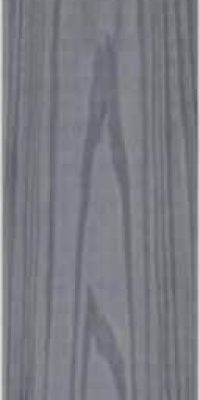

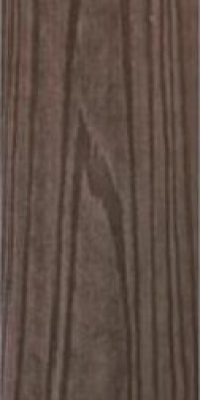

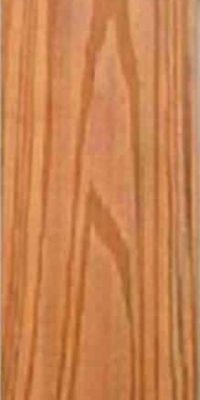

LightTeak
DarkTeak

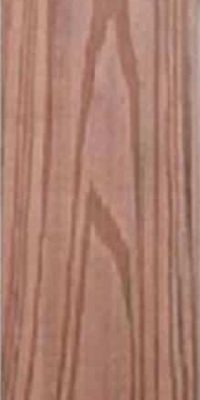

Red
Chocolate
DarkBrown

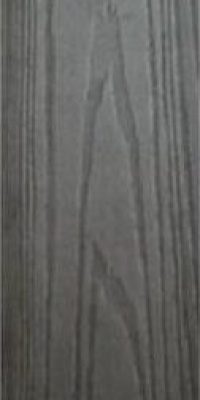

Grey
Black
Pinstripe
Medium stripe
Wide stripe
Sanded & flat
Wood-grained
Embossed
Beautiful Surface, Plenty colors choice and perfect wood grain texture Suit for most kinds of outdoor environment and sites.
Width |
135mm |
a40mm |
146mm |
Thickness |
25mm |
25mm |
21mm |
Width |
135mm |
140mm |
145mm |
Thickness |
20mm |
20mm |
-- |
Width |
135mm |
140mm |
145mm |
Thickness |
20mm |
25mm |
25mm |
★ RECYCLABLE
★ NOBLE AND ELEGANT
★ HIGH COMFORTABLE SURFACE
★ USE ON BOTH SIDES
★ SUPER EASY INSTALLATION
★ FIXATION HIDDEN
★ WORKS LIKE WOOD
★ INFLAMING RETARDING

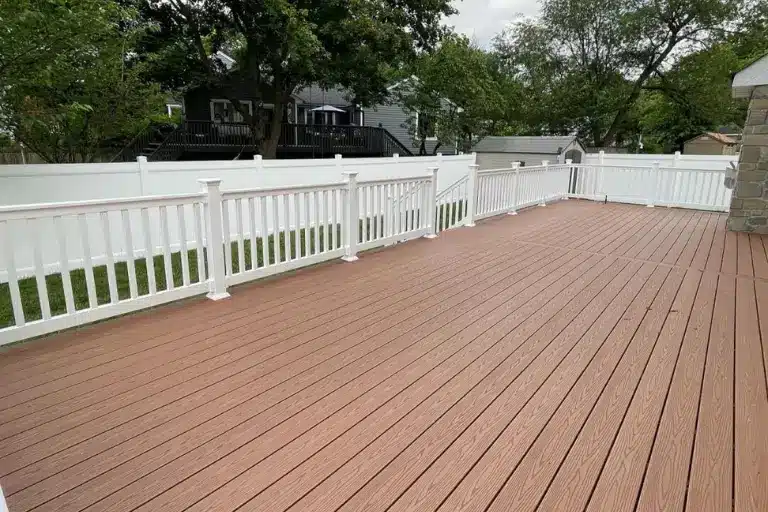

Showcase our different applications, residential, industrial, commercial, public spaces etc.
No. |
Inspection Item |
Standard Requirement |
Test Result |
Item Conclusion |
Test Basis |
---|---|---|---|---|---|
1 |
Bending Strength |
≥2500 |
5315 |
Conforming |
GB/T 24508-2020, 6.5.4.1 |
2 |
Impact Resistance |
Bending Strength Retention Rate ≥80% |
93% |
Conforming |
GB/T 24508-2020, 6.5.10 |
3 |
Low-Temperature Impact |
No Cracks at -10°C |
No Cracks |
Conforming |
GB/T 24508-2020, 6.5.12 |
4 |
Constant Temperature Water Absorption |
Water Absorption ≤12% |
7.3% |
Conforming |
GB/T 24508-2020, 6.5.8 |
5 |
Density |
≥0.3 g/cm³ |
0.58 g/cm³ |
Conforming |
GB/T 24508-2020, 6.3 |
6 |
Surface Hardness |
≥2 |
1.2 |
Conforming |
GB/T 24508-2020, 6.5.3 |
7 |
Surface Abrasion |
≤0.15 |
0.15 |
Conforming |
GB/T 24508-2020, 6.5.5 |
8 |
Dimensional Stability |
0.62 |
Conforming |
GB/T 24508-2020, 6.5.16 |
|
9 |
Thermal Aging Resistance |
After aging, external appearance, color, no cracking, and no peeling |
No change in external appearance, no cracking, and no peeling |
Conforming |
GB/T 24508-2020, 6.5.2 |
10 |
Water Absorption Length Direction |
≤0.3% |
<0.1% |
Conforming |
GB/T 24508-2020 (6.5.7) |
Water Absorption Width Direction |
≤0.3% |
<0.1% |
Conforming |
GB/T 24508-2020 (6.5.7) |
|
Water Absorption Thickness Direction |
≤0.5% |
<0.1% |
Conforming |
GB/T 24508-2020 (6.5.7) |
|
11 |
Heat Resistance Front, Back |
±1.0% |
0.2% |
Compliant |
GB/T 24508-2020 (6.5.8) |
Heat Resistance Dimensional Change Difference |
≤0.5 |
<0.1% |
Compliant |
GB/T 24508-2020 (6.5.8 |
|
12 |
Surface Quality Average Value |
≥1 |
1.41 |
Compliant |
GB/T 24508-2020 (6.3.7) |
13 |
Cold and Heat Cycle Resistance Surface Appearance |
No cracks, no bubbles |
No cracks, no bubbles |
Compliant |
GB/T 24508-2020 (6.5.9) |
Dimensional Change |
≤0.5 |
0.1 |
Compliant |
GB/T 24508-2020 (6.5.9) |
Sample Name |
Wood Plastic Decking |
Test Category |
Routine Inspection |
||
Commissioning Unit |
Ecoxplank |
Supplier |
Ecoxplank |
||
Manufacturer |
Ecoxplank |
Sample Status |
Complete Sample Received |
||
Sample Receipt Date |
March 17, 2022 |
Sample Quantity |
20 pieces |
||
Production Date/Batch No. |
Model Specification |
140mm×23mm×6000mm |
|||
Test Basis |
According to the test methods specified in GB/T 24508-2020 for wood plastic decking. |
Inspection Date |
March 21-23, 2022 |
||
Judgment Basis |
Wood Plastic Decking GB/T 24508-2020 |
||||
Inspection Items |
Full Item Inspection |
||||
Inspection Conclusion |
The sample submitted has been tested according to the methods specified in GB/T 24508-2020 for wood plastic decking. All tested items meet the standard requirements. |
||||
Date |
April 1, 2022 |
We have a large scale of automated production equipment to meet the simultaneous production of a variety of products, no matter the size of your order. In addition to producing WPC decking, WPC wall panels,WPC deck tiles,WPC wall cladding, composite fencing, etc. You can also quickly produce any WPC product to match your project needs.
65 Production Lines for WPC Composite Decking
As our factory complies with ISO quality management requirements, EcoxPlank’s products are made following SGS,CE, DIN, JIS, GOST and GB standards. Over the years, we have earned numerous certifications to provide you with an effective guarantee of our products’ quality.
If our standard size or color do not perfectly match your needs, we also offer custom service.
Business Address: No.1214, Block C, Jinhui Global Center, Yanta District, Xi ‘an, Shaanxi, China
Factory Address: Industrial Park, Caoxian County, Heze City, Shandong Province, China
Email: sales@ecoxplank.com
Our team is very friendly and ready to help you with any queryies.
If you would like to send us message, then please fill free to contact us via whatsapp or you can use this form. We will get in touch with you as soon as possible.

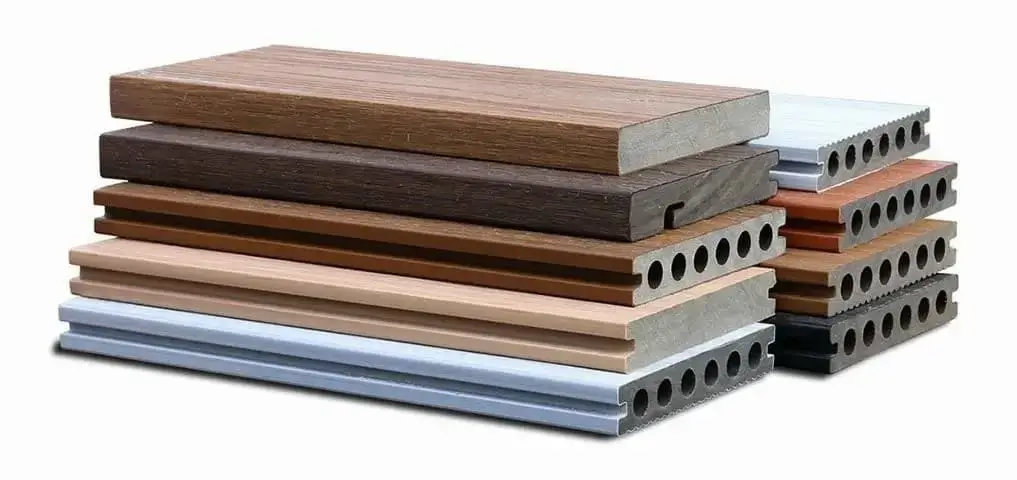

EcoxPlank is a leading manufacturer of high performance wood plastic composite (WPC) products in China. Contact us to get free samples. If our standard size do not match for you, we also provide custom service.
